Product Details:
|

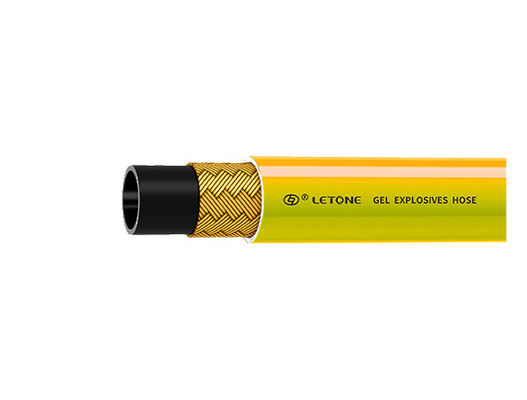

| Application: | A Specially Designed Hard Rock Mining For Conveying Gel Explosives. Is A Durable Hose That Handles The Toughest Mining Conditions. | Tube: | Conductive HDPE, Very Good Conductivity |
|---|---|---|---|
| Cover: | Polyurethane, Pu | Reinforcement: | Aramid (Kevlar) |
| Temperature: | -30 ℃ To 100 ℃. Considering The Ambient Temperature In Russia, Low Temperature In Winter. | Working Pressure: | 1000PSI. 70kg. |
| Burst Pressure: | 4000PSI. 280kg. |
| Internal Diameter | Outside Diameter | Wall Thickness | Weigth | Working Pressure | Tube Wall Thickness | Min Bend Radius | Resistivity |
| I.D.(mm) | O.D.(mm) | W.T.(mm) | weight(kg/mtr) | W.P(psi) | I.W.T(mm) | Min.B.R.(mm) | Resistivity |
| 19 | 28 | 4.5 | 0.6 | 1000 | 2.5 | 600 | ≤106 |
Note: The actual parameters are subject to the final atlas
