Product Details:
|
| Application: | Suitable For Conveying Mineral Oil | Tube: | Made Of Special Rubber With Good Oil And Weather Resistance |
|---|---|---|---|
| Reinforcement: | Reinforced With Copper Coated Steel Wire And Black Fabric Appearance | Cover: | Anti-aging Synthetic Rubber |
| Temperature Range：: | -40℃~+100℃(-40°F~+212°F) | Standard：: | Hose Execution MT/T98-2006 Standard |
| High Light: | Mining Letone Hydraulic Hose,210MPa Industrial Hydraulic Hose,Letone weather resistant hose |
||

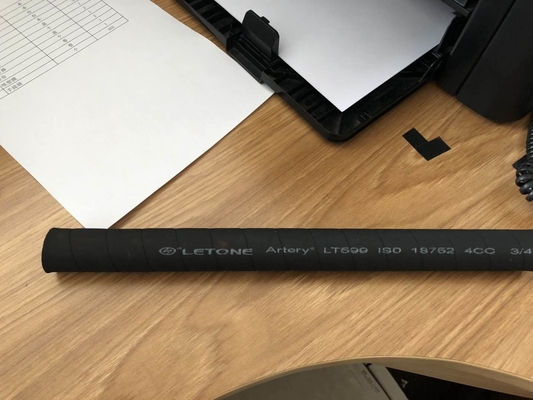

LT585 MT98 Wire Spiral Hydraulic Rubber Hose for Mining
It is an extremely flexible hose designed to operate at high working pressures and finds its applications on modern construction, marine, mining, and forestry equipment

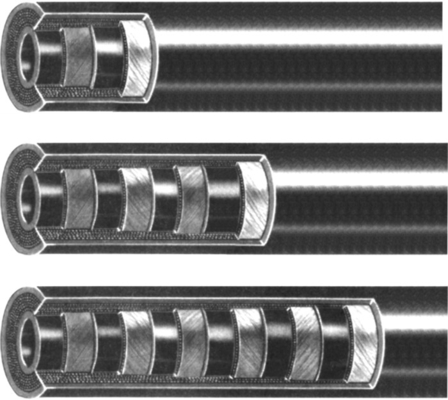

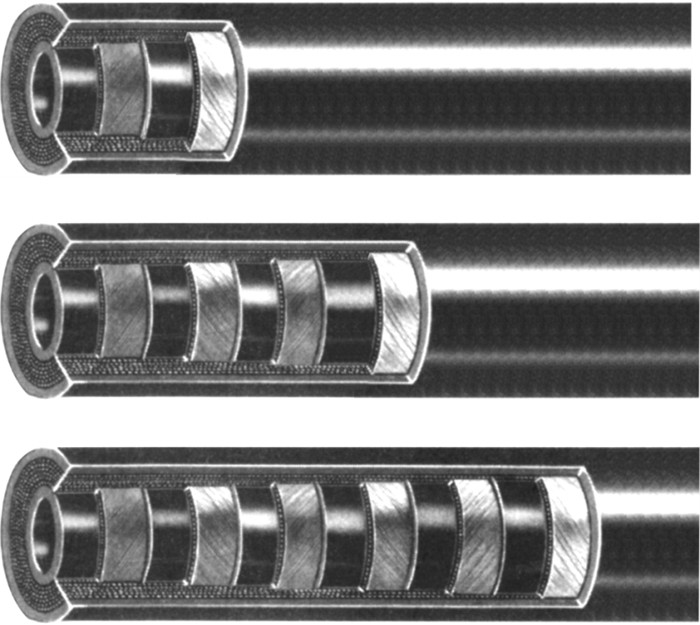

A hose consists of three basic components:
• The tube is made from several different rubber compounds and composites that must chemically resist
the fluid being conveyed. The tube must also resist corrosion, deterioration and the effects of high or
low temperatures.
• The reinforcement must resist fluid pressures, pressure spikes and hose bursts. It determines the
working pressure of the hose. The reinforcement can be a braid or spiral wrap and can be made of
natural fibers, synthetic materials or steel wire. Some hoses use a combination of fiber and steel wire or
multiple layers of steel wire braids or spirals.
• The cover is designed to protect the tube and reinforcement from heat, abrasion, corrosion and
environmental deterioration. The cover can be made from synthetic rubber, fiber braids or a
combination of both depending on the application.
Application: Suitable for conveying mineral oil, water-based hydraulic oil or water by hydraulic system such as coal mine hydraulic support and comprehensive coal mining unit
Tube: made of special rubber with good oil and weather resistance
Reinforcement: reinforced with copper coated steel wire and black fabric appearance
Cover: anti-aging synthetic rubber
Temperature Range: -40℃~+100℃(-40°F~+212°F)
Standard: Hose execution MT/T98-2006 standard
Characters: made of special rubber with good oil and weather resistance, reinforced with copper coated steel wire and black fabric appearance
Parameter
| I.D. (mm) | I.D. (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min. B.P. | Min. B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 10 | 3/8-4 | 9.7 | 10.5 | 24.0 | 70 | 210 | 180 |
| 13 | 1/2-4 | 12.7 | 13.5 | 27.5 | 57 | 172 | 210 |
| 16 | 5/8-4 | 15.7 | 16.6 | 31.0 | 53 | 160 | 260 |
| 19 | 3/4-4 | 18.7 | 19.8 | 35.5 | 46 | 140 | 280 |
| 22 | 7/8-4 | 21.7 | 22.8 | 39.5 | 41 | 124 | 320 |
| 25 | 1-4 | 24.7 | 25.8 | 42.5 | 35 | 112 | 360 |
| 32 | 1 1/4-4 | 31.6 | 32.6 | 50.5 | 32 | 84 | 460 |
| 38 | 1 1/2-4 | 37.7 | 38.8 | 57.5 | 25 | 75 | 560 |
| 45 | 1 3/4-4 | 44.7 | 45.8 | 64.5 | 21 | 64 | 640 |
| 51 | 2-4 | 50.5 | 52.0 | 70.5 | 21 | 64 | 720 |
| 10 | 3/8-6 | 9.7 | 10.5 | 26.0 | 80 | 240 | 180 |
| 13 | 1/2-6 | 12.7 | 13.5 | 30.5 | 72 | 216 | 210 |
| 16 | 5/8-6 | 15.7 | 16.6 | 34.5 | 70 | 204 | 260 |
| 19 | 3/4-6 | 18.7 | 19.8 | 38.5 | 60 | 180 | 280 |
| 22 | 7/8-6 | 21.7 | 22.8 | 42.5 | 53 | 160 | 320 |
| 25 | 1-6 | 24.7 | 25.8 | 45.5 | 50 | 152 | 360 |
| 32 | 1 1/4-6 | 31.6 | 32.6 | 53.5 | 41 | 124 | 460 |
| 38 | 1 1/2-6 | 37.7 | 38.8 | 60.5 | 36 | 108 | 560 |
| 45 | 1 3/4-6 | 44.7 | 45.8 | 67.5 | 32 | 96 | 640 |
| 51 | 2-6 | 50.5 | 52.0 | 74.0 | 32 | 96 | 720 |
