Product Details:
|
| Application: | Suitable For Conveying Mineral Oil, Water-based Hydraulic Oil Or Water By Hydraulic System | Tube: | Black, Oil Resistant Sythentic Rubber |
|---|---|---|---|
| Reinforcement: | 4 Layers Of Spiraled High Tensile Steel Wire | Cover: | Weather Resistant Sythentic Rubber |
| Temperature Range：: | -40℃~+100℃ (-40°F~+212°F) | Standard：: | EN856-4SP；GB/T10544-2013 |
| High Light: | GB T10544-2013 Steel Wire Rubber Hose,Flexible Steel Wire Rubber Hose,GB T10544-2013 flexible rubber hose |
||

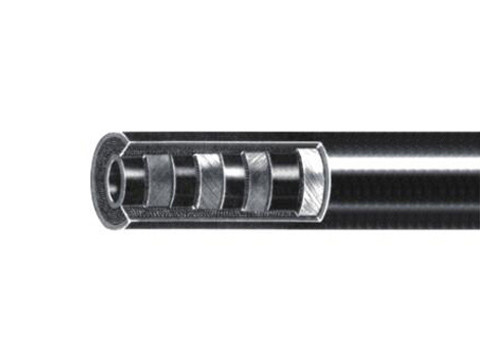

LT583 EN856-4SP 4 Wire Spiral Hydraulic Rubber Hose
Spiral Hoses
The reinforcement wires in a spiral constructed hydraulic hose remain parallel as they perpendicularly wrap around the hose in layers. You will find spiral wire hoses in heavy duty construction equipment and are designed for its strength and high-impulse applications.
This hose does not offer great flexibility like its braided counterpart but does offer maximum pressure capacity for heavy duty hydraulic projects.
While both types of hoses are manufactured for their specific function in construction machinery, choosing the right hydraulic hose can be a difficult task, since a variety of factors must be taken into consideration.
hydraulic hoses with spiral construction for long-lasting performance. This unique construction sees wires crossing each other, wires remain parallel as they wrap around the hose. These hydraulic hoses achieve long-lasting performance in everything from lawn tractors to very large machines.
This type of hose construction enables efficient productivity in applications that demand faster, higher-performing products.
It is an extremely flexible hose designed to operate at high working pressures and finds its applications on modern construction, marine, mining, and forestry equipment
Application: Suitable for conveying mineral oil, water-based hydraulic oil or water by hydraulic system such as coal mine hydraulic support and comprehensive coal mining unit
Tube: black, oil resistant sythentic rubber
Reinforcement: 4 layers of spiraled high tensile steel wire
Cover: weather resistant sythentic rubber
Temperature Range: -40℃~+100℃ (-40°F~+212°F)
Standard: EN856-4SP；GB/T10544-2013
Parameter
| I.D. (mm) | I.D. (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min. B.P. | Min. B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 10 | 3/8-4 | 9.7 | 10.5 | 24.0 | 70 | 210 | 180 |
| 13 | 1/2-4 | 12.7 | 13.5 | 27.5 | 57 | 172 | 210 |
| 16 | 5/8-4 | 15.7 | 16.6 | 31.0 | 53 | 160 | 260 |
| 19 | 3/4-4 | 18.7 | 19.8 | 35.5 | 46 | 140 | 280 |
| 22 | 7/8-4 | 21.7 | 22.8 | 39.5 | 41 | 124 | 320 |
| 25 | 1-4 | 24.7 | 25.8 | 42.5 | 35 | 112 | 360 |
| 32 | 1 1/4-4 | 31.6 | 32.6 | 50.5 | 32 | 84 | 460 |
| 38 | 1 1/2-4 | 37.7 | 38.8 | 57.5 | 25 | 75 | 560 |
| 45 | 1 3/4-4 | 44.7 | 45.8 | 64.5 | 21 | 64 | 640 |
| 51 | 2-4 | 50.5 | 52.0 | 70.5 | 21 | 64 | 720 |
| 10 | 3/8-6 | 9.7 | 10.5 | 26.0 | 80 | 240 | 180 |
| 13 | 1/2-6 | 12.7 | 13.5 | 30.5 | 72 | 216 | 210 |
| 16 | 5/8-6 | 15.7 | 16.6 | 34.5 | 70 | 204 | 260 |
| 19 | 3/4-6 | 18.7 | 19.8 | 38.5 | 60 | 180 | 280 |
| 22 | 7/8-6 | 21.7 | 22.8 | 42.5 | 53 | 160 | 320 |
| 25 | 1-6 | 24.7 | 25.8 | 45.5 | 50 | 152 | 360 |
| 32 | 1 1/4-6 | 31.6 | 32.6 | 53.5 | 41 | 124 | 460 |
| 38 | 1 1/2-6 | 37.7 | 38.8 | 60.5 | 36 | 108 | 560 |
| 45 | 1 3/4-6 | 44.7 | 45.8 | 67.5 | 32 | 96 | 640 |
| 51 | 2-6 | 50.5 | 52.0 | 74.0 | 32 | 96 | 720 |
