Product Details:
|
| Application: | Suitable For The Use Of Petroleum Base Hydraulic Oil | Tube: | The Hose Consists Of A Neoprene Inner Rubber Layer |
|---|---|---|---|
| Reinforcement: | 4-layer High Strength Steel Wire Winding Layer | Cover: | Oil And Weather Resistant Synthetic Rubber Outer Rubber Layer |
| Temperature Range：: | -40℃~+100℃(-40°F~+212°F) | Standard：: | Hose Execution Ne856-4sh Standard, GB/ T10544-2013 Standard |
| High Light: | Ne856 4sh Hydraulic Pressure Hose,Petroleum High Pressure Hydraulic Tubin,Ne856 4sh High Pressure Hydraulic Tubin |
||

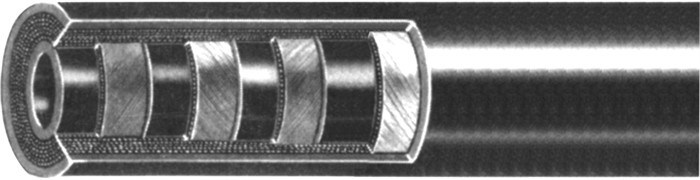

LT588 EN856-4SH 4 Wire Spiral Hydraulic Rubber Hose
Recommended For: Extremely high pressure and high impulse hydraulic applications. This hose is the most flexible EN856 4SH hose in the industry with superior impulse performance (tested to 1,000,000 impulse cycles at bend radius lower than EN 856 Standard). Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
Tube: The hose consists of a neoprene inner rubber layer
Reinforcement: 4-layer high strength steel wire winding layer
Cover: oil and weather resistant synthetic rubber outer rubber layer
Temperature Range: -40℃~+100℃(-40°F~+212°F)
Standard: Hose execution ne856-4sh standard, GB/ t10544-2013 standard
Characters: made of special rubber with good oil and weather resistance, reinforced with copper coated steel wire and black fabric appearance
Parameter
| I.D. (mm) | I.D. (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min. B.P. | Min. B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 10 | 3/8-4 | 9.7 | 10.5 | 24.0 | 70 | 210 | 180 |
| 13 | 1/2-4 | 12.7 | 13.5 | 27.5 | 57 | 172 | 210 |
| 16 | 5/8-4 | 15.7 | 16.6 | 31.0 | 53 | 160 | 260 |
| 19 | 3/4-4 | 18.7 | 19.8 | 35.5 | 46 | 140 | 280 |
| 22 | 7/8-4 | 21.7 | 22.8 | 39.5 | 41 | 124 | 320 |
| 25 | 1-4 | 24.7 | 25.8 | 42.5 | 35 | 112 | 360 |
| 32 | 1 1/4-4 | 31.6 | 32.6 | 50.5 | 32 | 84 | 460 |
| 38 | 1 1/2-4 | 37.7 | 38.8 | 57.5 | 25 | 75 | 560 |
| 45 | 1 3/4-4 | 44.7 | 45.8 | 64.5 | 21 | 64 | 640 |
| 51 | 2-4 | 50.5 | 52.0 | 70.5 | 21 | 64 | 720 |
| 10 | 3/8-6 | 9.7 | 10.5 | 26.0 | 80 | 240 | 180 |
| 13 | 1/2-6 | 12.7 | 13.5 | 30.5 | 72 | 216 | 210 |
| 16 | 5/8-6 | 15.7 | 16.6 | 34.5 | 70 | 204 | 260 |
| 19 | 3/4-6 | 18.7 | 19.8 | 38.5 | 60 | 180 | 280 |
| 22 | 7/8-6 | 21.7 | 22.8 | 42.5 | 53 | 160 | 320 |
| 25 | 1-6 | 24.7 | 25.8 | 45.5 | 50 | 152 | 360 |
| 32 | 1 1/4-6 | 31.6 | 32.6 | 53.5 | 41 | 124 | 460 |
| 38 | 1 1/2-6 | 37.7 | 38.8 | 60.5 | 36 | 108 | 560 |
| 45 | 1 3/4-6 | 44.7 | 45.8 | 67.5 | 32 | 96 | 640 |
| 51 | 2-6 | 50.5 | 52.0 | 74.0 | 32 | 96 | 720 |
