Product Details:
|
| Application: | Reinforced Concrete Pump Hose, Special Easy To Operate Design, Suitable For Concrete Pouring Site | Inner Tube: | Black NR Conductive Rubber-abrasion Resistant |
|---|---|---|---|
| Reinforcement: | High Tensile Steel Cords | Temperature Range: | -30℃（-22°F）~+80℃（+176°F） |
| Outer Layer: | Black SBR/NR Blend Conductive Rubber, Abrasion-resistant, Oxidation-resistant | Standard: | DIN53516 |
| High Light: | 1275PSI Concrete Pumping Hose,High Tensile Steel Wire Reinforced Hose,1275PSI Steel Wire Reinforced Hose |
||

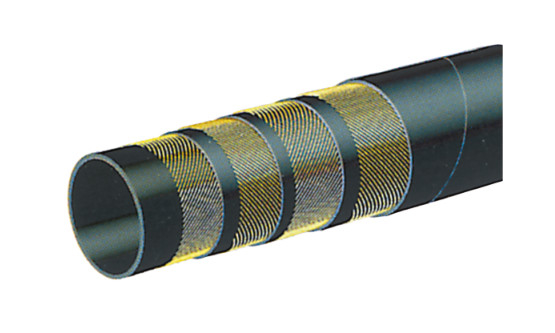

LT1306-A 1275PSI High Performance Steel Reinforced Concrete Pumping Hose
Application: Reinforced concrete pump hose, special easy to operate design, suitable for concrete pouring site
Inner Tube: Black NR conductive rubber-abrasion resistant
Reinforcement: High tensile steel cords
Outer Layer: Black SBR/NR blend conductive rubber, abrasion-resistant, oxidation-resistant
Working Pressure: 85Bar(1275PSI)
Temperature Range: -30℃(-22°F)~+80℃(+176°F)
Parameter:
| Specifications | ||||||||
| Series | ID(in.) | ID(mm) | OD(in.) | OD(mm) | Wall Thickness(mm) | MaxRec.WP(PSI) | Min.B.R | Weight(kg/m) |
| LT1306-200 | 2 | 51 | 2.72 | 69 | 9 | 1275 | 10 | 2.14 |
| LT1306-250 | 21/2 | 63 | 3.35 | 85 | 11 | 1275 | 101/2 | 3.35 |
| LT1306-300 | 3 | 76 | 3.94 | 100 | 12 | 1275 | 15 | 4.55 |
| LT1306-400 | 4 | 102 | 5.04 | 128 | 13 | 1275 | 20 | 7.02 |
| LT1306-500 | 5 | 127 | 6.10 | 155 | 14 | 1275 | 25 | 10.34 |
