Product Details:
|
| Application: | Suitable For Using Oil Base Hydraulic Oil, Is Suitable For The Harsh Conditions Of High Temperature And Medium Pressure Hose | Tube: | Wear-resistant Rubber |
|---|---|---|---|
| Reinforcement: | Adopts 4-layer High-strength Steel Wire Wrapped Layer As The Framework Layer | Cover: | Wear-resistant Rubberouter Rubber Layers |
| Brand: | LETONE | Standard: | Hose Execution SAE100R13 Standard, GB/T10544-2013 Standard |
| High Light: | 4 Layer Steel Wire Spiral Hydraulic Hose,SAE 100R13 Steel Wire Spiral Hydraulic Hose,SAE 100R13 rubber hydraulic hose |
||

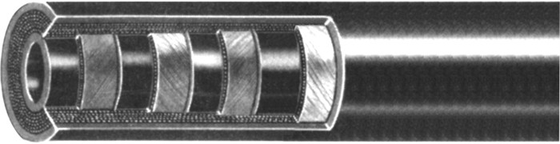

SAE 100 R13 steel wire spiraled hydraulic hose is suitable for delivering petroleum-based hydraulic oils and it is also mainly used in high pressure working conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from black oil resistant synthetic rubber, making it have excellent performance in conveying petroleum-based hydraulic oils. The reinforcement is made from multiple layers of high tensile and high strength thick spiraled steel wire in alternating direction, making the hose have extremely high working pressure. Besides, the steel wire spiraled hydraulic hose can bear higher working pressure than steel wire reinforced hydraulic hose. Therefore, the hose has outstanding performance in very high pressure environment. The cover is made from high quality black synthetic rubber, making the hose resistant to abrasion, corrosion, cut, weather, ozone, aging and sunlight.
Application: suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
Tube: wear-resistant rubber
Reinforcement: adopts 4-layer high-strength steel wire wrapped layer as the framework layer
Cover: wear-resistant rubberouter rubber layers
Standard: Hose execution SAE100R13 standard, GB/T10544-2013 standard
Parameter
| I.D. (mm) | I.D. (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min. B.P. | Min. B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 19 | 3/4 | 18.6 | 19.8 | 33.2 | 35 | 140 | 240 |
| 25 | 1 | 25.0 | 26.4 | 39.8 | 35 | 140 | 300 |
| 32 | 1 1/4 | 31.4 | 33.0 | 51.3 | 35 | 140 | 420 |
| 38 | 1 1/2 | 37.7 | 39.3 | 58.8 | 35 | 140 | 500 |
| 51 | 2 | 50.4 | 52.0 | 72.7 | 35 | 140 | 640 |
