Product Details:
|
| Applications: | Suitable For Conveying Petroleum Oil | Tube: | Black Oil-resistant Synthetic Rubber |
|---|---|---|---|
| Reinforcement: | One Or Two Layers Of Super Flexible High-strength Steel Wire | Cover: | Black Oil-resistant, Weather-resistant, Wear-resistant Synthetic Rubber |
| Temperature Range: | -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) | Brand: | LETONE |
| High Light: | SAE 100R19 Reinforced Rubber Tubing,3 16 Steel Wire Hoses,3 16 Reinforced Rubber Tubing |
||

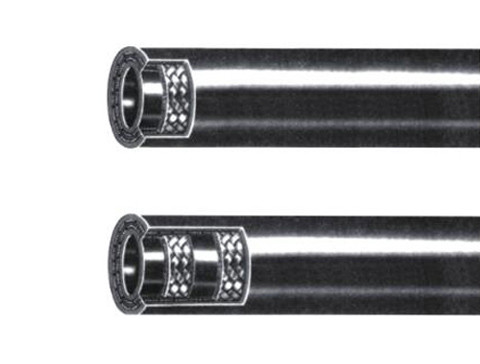

LT689 SAE 100R19 Compact 1 and 2 steel Wire Reinforced Rubber Hoses
Many hoses can degrade in the presence of oil and are not strong enough for use in hydraulic systems. In the automotive, mining, oil processing, chemical manufacturing, and food processing industries, there is a demand for high-quality industrial hoses that can stand up to pressure and in the presence of petrochemicals.
Wire braided hoses offer greater temperature and pressure resistance than other industrial hoses. These oil-resistant hoses do an excellent job transporting fuels, chemicals, oil, air, steam, and water. Steel wire braided hoses can be used to transport petrochemicals and hydraulic fluids under relatively high pressures and temperatures. In addition, oil-resistant wire braided hoses can provide flexible connections between steel pipes in hydraulic systems.
Parameter
| SIZE (Dash) | SIZE (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min.B.P. | Min.B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 5 | 3/16 | 4.6 | 5.4 | 12.7 | 28 | 56 | 45 |
| 6 | 1/4 | 6.2 | 7.0 | 14.4 | 28 | 56 | 50 |
| 8 | 5/16 | 7.7 | 8.5 | 16.3 | 28 | 56 | 55 |
| 10 | 3/8 | 9.3 | 10.1 | 18.0 | 28 | 56 | 65 |
| 13 | 1/2 | 12.3 | 13.5 | 22.6 | 28 | 56 | 90 |
| 16 | 5/8 | 15.5 | 16.7 | 27.5 | 28 | 56 | 100 |
| 19 | 3/4 | 18.6 | 19.8 | 32.5 | 28 | 56 | 120 |
