Product Details:
|
| Applications: | Oil Discharge Hose Designed For Use On Trucks, Docks Or Barges Where A Soft Wall Hose Is Required | Tube: | Black Conductive NBR |
|---|---|---|---|

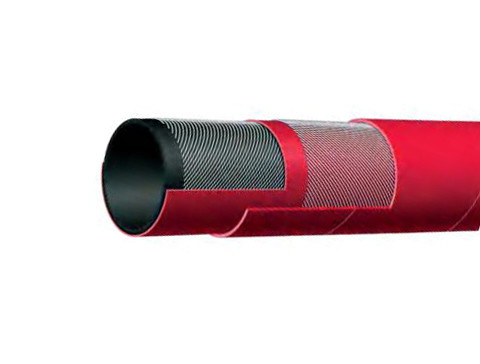

| Reinforcement: | Spiralled High Tensile Textile Cords With Embedded Static Wire | Cover: | Red CR-abrasion, Ozone And Hydrocarbon Resistant |
| Working Pressure: | Constant Pressure-10Bar(150PSI) | Temperature Range: | -30℃(-22°F)to +80℃(+176°F) |
| High Light: | Static Wire Oil Discharge Hose,0.92kg/M Oil Discharge Hose |
||
| Specifications | ||||||
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | Max.W.P.(psi) | W. (kg/m) |
| LT1215-150 | 11/2 | 38 | 1.89 | 48 | 150 | 0.92 |
| LT1215-200 | 2 | 51 | 2.40 | 61 | 150 | 1.22 |
| LT1215-300 | 3 | 76 | 3.46 | 88 | 150 | 2.11 |
| LT1215-400 | 4 | 102 | 4.49 | 114 | 150 | 2.86 |
