Product Details:
|
| Brand: | LETONE | Inner Layer: | Synthetic Rubber Lined With UPE |
|---|---|---|---|
| Reinforcement Layer: | Synthetic Fiber And Spiral Steel Wire | Outer Layer: | Black / Red / Yellow / Blue Ozone-resistant, UV-resistant, And Wear-resistant EPDM Rubber |
| Temperature Range: | -30 ° C ~ + 100 ° C (-22 ° F ~ + 212 ° F) Steam Can Reach + 135 ° C (within 30 Minutes) | Reference Standard: | EN12115 |
| High Light: | Dia 13mm Chemical Resistant Hose,synthetic fiber Chemical Resistant Hose |
||

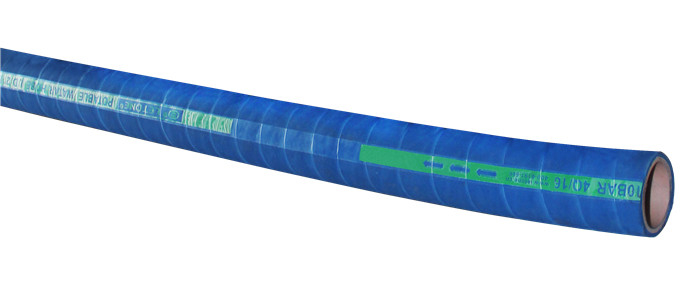

LT1202L UPE low pressure multifunctional industrial hose
Hose designed specifically to carry highly acidic, alkaloid or otherwise corrosive liquids are par for the course in industrial and manufacturing environments. Our engineers and sales staff begin by helping assess of chemicals your hose will transmit and come in contact with. We then create hose based on our broad range of alkali and acid-resistant tube/carcass/cover materials to stand up to most corrosive fluids. Your chemical-safe hose is further custom engineered to optimize material gauges and overall wall thickness based on your operating environment.
Application: This product is widely used in chemical, steel, construction, food, medicine and other fields. It has super wear-resistant and corrosion-resistant product characteristics and high saturation lining, which means that the product is almost free of any substances , Corrosive chemicals, etc.), the product ’s absolutely neutral odor also determines its suitability for the food and beverage industry and the production of pharmaceutical products
Inner layer: synthetic rubber lined with UPE
Reinforcement layer: synthetic fiber and spiral steel wire
Outer layer: black / red / yellow / blue ozone-resistant, UV-resistant, and wear-resistant EPDM rubber
Temperature range: -30 ° C ~ + 100 ° C (-22 ° F ~ + 212 ° F) steam can reach + 135 ° C (within 30 minutes)
Parameter
| I.D. | O.D. | W.P. | W.P. | W.T. | ||||
| Dash | In. | mm | mm | MPa | psi | MPa | psi | g/m |
| -4 | 1/4 | 6 | 13 | 2 | 300 | 6 | 900 | 160 |
| -5 | 5/16 | 8 | 15 | 2 | 300 | 6 | 900 | 200 |
| -6 | 3/8 | 10 | 17 | 2 | 300 | 6 | 900 | 220 |
| -8 | 1/2 | 13 | 21 | 2 | 300 | 6 | 900 | 340 |
| -10 | 5/8 | 16 | 25 | 2 | 300 | 6 | 900 | 450 |
| -12 | 3/4 | 19 | 29 | 2 | 300 | 6 | 900 | 570 |
| -16 | 1 | 25 | 35 | 2 | 300 | 6 | 900 | 740 |
| -20- | 1 1/4 | 32 | 44 | 2 | 300 | 6 | 900 | 920 |
| -24 | 11/2 | 38 | 52 | 2 | 300 | 6 | 900 | 1080 |
| -32 | 2 | 51 | 66 | 2 | 300 | 6 | 900 | 1650 |
