Product Details:
|

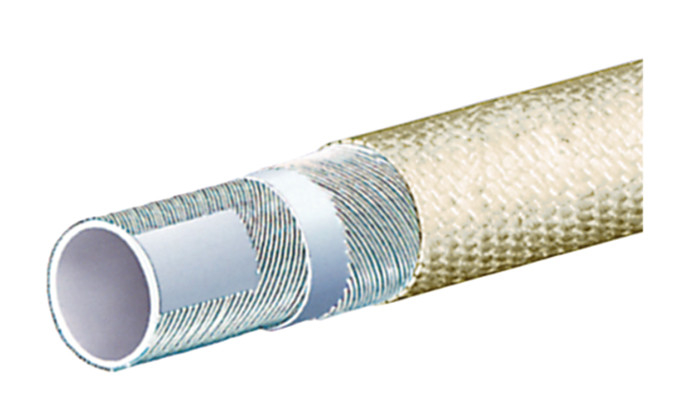

| Application: | Deliver Cooling Water To The Door In A Steel, Glass Or Foundry, Or In A Hot, Hot Metal Or Glass Spatter Environment. | Inner Tube: | Water And High Temperature Resistant EPDM Synthetic Rubber |
|---|---|---|---|
| Reinforcement: | High Tension Textile Rope And High Flexibility Spiral Steel Wire | Outer Layer: | High Temperature Resistant Synthetic Rubber And Heat Resistant Glass Fiber |
| Temperature RangeRange: | Inner Tube | ||
| High Light: | Deliver Cooling Water Special Hose,LETONE Furnace Door Hose,Cooling Water Furnace Door Hose |
||
| Specifications | ||||||
| Series | ID(in.) | ID(mm) | OD(in.) | OD(mm) | MaxRec.WP(PSI) | Weight(kg/m) |
| LT1402-050 | 1/2 | 13 | 0.98 | 25 | 300 | 0.45 |
| LT1402-075 | 3/4 | 19 | 1.30 | 33 | 300 | 0.71 |
| LT1402-100 | 1 | 25 | 1.54 | 39 | 300 | 0.86 |
| LT1402-125 | 11/4 | 32 | 1.89 | 48 | 300 | 1.25 |
| LT1402-150 | 11/2 | 38 | 2.13 | 54 | 300 | 1.46 |
| LT1402-200 | 2 | 51 | 2.64 | 67 | 300 | 1.87 |
| LT1402-250 | 21/2 | 63 | 3.19 | 81 | 300 | 2.31 |
| LT1402-300 | 3 | 76 | 3.78 | 96 | 300 | 3.20 |
