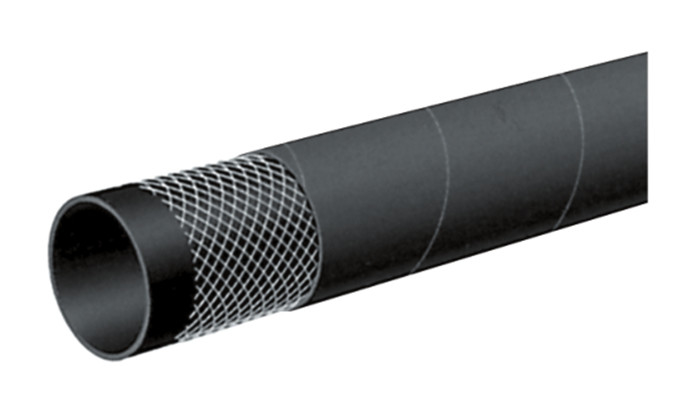

Product Details:
|
| Application: | High Pressure, 150PSI Flat Suction Hose For General Use In Industrial Construction And Irrigation | Inner Tube: | Black EPDM Rubber |
|---|---|---|---|
| Reinforcement: | High Tension Textile Cord | Cover: | Black EPDM Rubber, Wear-resistant, Oxidation-resistant |
| Working Pressure: | Constant Pressure Of 10Bar(150PSI) | Temperature Range: | - 30 ℃ - 22 ° F) And + 80 ℃ (+ 176 ° F) |
| High Light: | Squeezable Epdm Suction Hose,10 Bar Suction Discharge Hose,Squeezable Suction Discharge Hose |
||
Temperature range: - 30 ℃ - 22 ° F) and + 80 ℃ (+ 176 ° F)
Suction and discharge hoses (also known as suction and delivery hoses) are one of the largest hoses we manufacture in terms of diameter, usually made from a flexible PVC material and containing a PVC helix. The flexibility of these hoses can range from rigid to super flexible, depending on the application and durability needed.
These hoses operate under negative pressures, meaning they are able to draw water, slurries and various other types of substances from a static source, such as a tank or pool. They are resistant to a range of temperatures, depending on the hose, but are commonly designed to withstand vacuum rather than pressure, abrasion or heat. However, the PVC helix, found in a majority of suction hoses, helps to reduce crushing and kinking.
There are types of suction and discharge hoses that are more heavy-duty and designed to be more durable and resistant to factors such as abrasions, heat, chemicals and weather. An example being our External Spiral Suction Hose. A hose with an external PVC helix for added crush and abrasion resistance. This hose and types like it are better suited to more demanding applications
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | MaxRec.W.P. (PSI) | Weight (kg/m) |
| LT903-150 | 11/2 | 38 | 1.81 | 46 | 150 | 0.55 |
| LT903-200 | 2 | 51 | 2.32 | 59 | 150 | 0.74 |
| LT903-250 | 21/2 | 63 | 2.80 | 71 | 150 | 0.89 |
| LT903-300 | 3 | 76 | 3.31 | 84 | 150 | 1.28 |
| LT903-400 | 4 | 102 | 4.33 | 110 | 150 | 1.77 |
| LT903-600 | 6 | 152 | 6.38 | 162 | 150 | 2.98 |
| LT903-662 | 65/8 | 168 | 7.01 | 178 | 150 | 3.23 |
| LT903-800 | 8 | 203 | 8.46 | 215 | 150 | 4.20 |
| LT903-1000 | 10 | 254 | 10.63 | 270 | 150 | 7.60 |
| LT903-1200 | 12 | 305 | 12.56 | 319 | 150 | 8.82 |
