Product Details:
|
| Application: | Suitable For The Use Of Petroleum Base Hydraulic Oil | Tube: | The Hose Consists Of A Neoprene Inner Rubber Layer |
|---|---|---|---|
| Reinforcement: | 4-layer High Strength Steel Wire Winding Layer | Cover: | Oil And Weather Resistant Synthetic Rubber Outer Rubber Layer |
| Temperature Range：: | -40℃~+100℃(-40°F~+212°F) | Standard：: | Hose Execution Ne856-4sh Standard, GB/ T10544-2013 Standard |
| High Light: | Wire Spiral Synthetic Rubber Hose,EN856 4sh Hydraulic Hose,EN856 4sh Synthetic Rubber Hose |
||

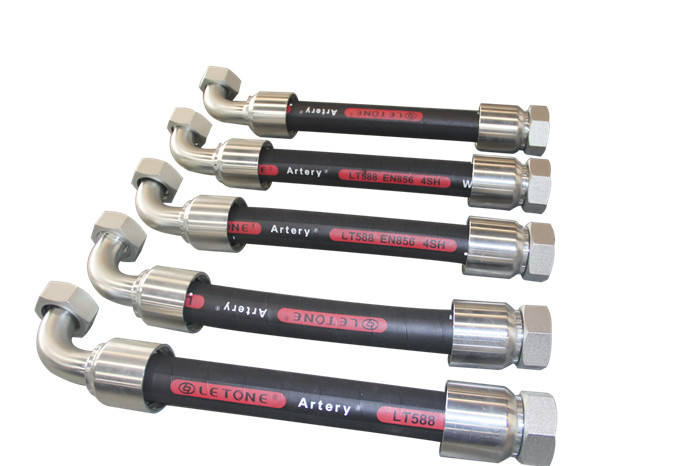

LT588 EN856-4SH 4 Wire Spiral Hydraulic Rubber Hose
Application: suitable for the use of petroleum base hydraulic oil
Tube: The hose consists of a neoprene inner rubber layer
Reinforcement: 4-layer high strength steel wire winding layer
Cover: oil and weather resistant synthetic rubber outer rubber layer
Temperature Range: -40℃~+100℃(-40°F~+212°F)
Standard: Hose execution ne856-4sh standard, GB/ t10544-2013 standard
Characters: made of special rubber with good oil and weather resistance, reinforced with copper coated steel wire and black fabric appearance
Parameter
| I.D. (mm) | I.D. (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min. B.P. | Min. B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 10 | 3/8-4 | 9.7 | 10.5 | 24.0 | 70 | 210 | 180 |
| 13 | 1/2-4 | 12.7 | 13.5 | 27.5 | 57 | 172 | 210 |
| 16 | 5/8-4 | 15.7 | 16.6 | 31.0 | 53 | 160 | 260 |
| 19 | 3/4-4 | 18.7 | 19.8 | 35.5 | 46 | 140 | 280 |
| 22 | 7/8-4 | 21.7 | 22.8 | 39.5 | 41 | 124 | 320 |
| 25 | 1-4 | 24.7 | 25.8 | 42.5 | 35 | 112 | 360 |
| 32 | 1 1/4-4 | 31.6 | 32.6 | 50.5 | 32 | 84 | 460 |
| 38 | 1 1/2-4 | 37.7 | 38.8 | 57.5 | 25 | 75 | 560 |
| 45 | 1 3/4-4 | 44.7 | 45.8 | 64.5 | 21 | 64 | 640 |
| 51 | 2-4 | 50.5 | 52.0 | 70.5 | 21 | 64 | 720 |
| 10 | 3/8-6 | 9.7 | 10.5 | 26.0 | 80 | 240 | 180 |
| 13 | 1/2-6 | 12.7 | 13.5 | 30.5 | 72 | 216 | 210 |
| 16 | 5/8-6 | 15.7 | 16.6 | 34.5 | 70 | 204 | 260 |
| 19 | 3/4-6 | 18.7 | 19.8 | 38.5 | 60 | 180 | 280 |
| 22 | 7/8-6 | 21.7 | 22.8 | 42.5 | 53 | 160 | 320 |
| 25 | 1-6 | 24.7 | 25.8 | 45.5 | 50 | 152 | 360 |
| 32 | 1 1/4-6 | 31.6 | 32.6 | 53.5 | 41 | 124 | 460 |
| 38 | 1 1/2-6 | 37.7 | 38.8 | 60.5 | 36 | 108 | 560 |
| 45 | 1 3/4-6 | 44.7 | 45.8 | 67.5 | 32 | 96 | 640 |
| 51 | 2-6 | 50.5 | 52.0 | 74.0 | 32 | 96 | 720 |
