Product Details:
|
| Features: | Remove Dirt Deposited On The Surface | Range Of Application: | Ultra-high Pressure Water Jet Application, Especially Suitable For Jet Nozzles |
|---|---|---|---|
| Pressure Range: | 2000 ~ 2800 Bar (29000 ~ 40600 Psi) | Feature: | Continuous Long Pipe Without Broken Ends Is Used To Replace Steel Pipe |
| High Light: | DN20 High Pressure Transmission Hose,DN5 High Pressure Transmission Hose,29000 Psi hose pipe jet wash |
||

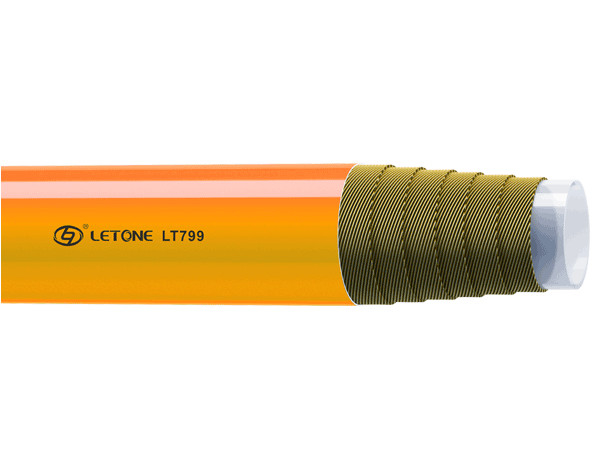

LT799D 6S Ultra high pressure resin hose high pressure cleaning hose
Introduction
Range of application: Ultra-high pressure water jet application, especially suitable for jet nozzles:
Scope of application: ultra-high pressure water jet applications, especially for jet nozzles
Pressure range: 2000 ~ 2800 bar (29000 ~ 40600 psi)
Features: Good flexibility
Feature: Continuous long pipe without broken ends is used to replace steel pipe
Features: water jet cutting
Features: hydraulic demolition
Features: remove dirt deposited on the surface
Specification
| Part No. | Dimension | ID | OD | WP | | |||||
| dash | inch | DN | mm | inch | mm | inch | bar | psi I | |
| • D6S-5-2800 | -3 | 3/16 | 5 | 5.0 | 0.197 | 14.8 | 0.583 | 2800 | 40600 |
| OD6S-6-2800 | -4 | 1/4 | 6 | 6.3 | 0.248 | 16.5 | 0.650 | 2800 | 40600 |
| • D6S-8-2500 | -5 | 5/16 | 8 | 8.1 | 0.319 | 19.0 | 0.748 | 2500 | 36200 |
| • D6S-12-2070 | -8 | 1/2 | 12 | 12.8 | 0.504 | 25.9 | 1.020 | 2070 | 30000 |
| • D6S-20-1600 | -12 | 3/4 | 20 | 18.8 | 0.740 | 33.7 | 1.327 | 1600 | 23200 |
Letone Growth: Value+Values
As one of leaders of global industrial hose, Letone always seeks innovation&excellence. Grasping strong production capability, advanced research strength and excellent service, Letone create the values to all of customers.
Independent R&D
3% of sales volume is put on R&D every year. Letone has established its own laboratory, Italian Bimal Impulse Test Stand, Mooney viscosity, a moving die rheometer, high and low temperature test box, an ozone test machine, a UV test machine and super high pressure burst test machine,etc. Letone has set up a R&D center for high pressure rubber hose cooperatively with Qingdao University of Science and Technology, with professional team of 36 technicians including 3 professors/doctoral supervisors, 6 senior engineer and technicians.Letone has mastered the full set of core technology for manufacturing hydraulic rubber hose and obtained 9 national invention patents and 23 utility model patents. It has been the main enterprise unit for drafting several technical standards of China rubber hose industry.
International Trade
Letone has a perfect set of international trade system, ranging from international trade marking to international trade negotiation and from domestic one-step service to overseas localization service. Letone's international trade markets have been expended across Asia, Africa,USA and other developing counties steadily and have been successfully extended into Europe, America and Australia. Letone is changing the way business in done.
Technical Service
Letone believes the value of brand, which originates from not only excellent products and solutions, but also considerate pre-sales & after-sales technical services.So, we have set up a team with hundreds of technical engineers to resolve a series of problems during project consultation, on-site surveys, sample analysis, program design, installation, commissioning and maintenance guidance, which can ensure that each link is docking in pace with customers and timely solve customer needs.
