Product Details:
|
| Name: | High Pressure Cleaning Hose | Range Of Application: | Water Jet Industry Is Especially Suitable For Water Guns |
|---|---|---|---|
| Pressure Range: | 760 ~ 1400 Bar (15000 ~ 31900psi) | Feature: | Special Size For Bolt Fastening Industry |
| High Light: | 3/16" High Pressure Cleaning Hose,3/16" High Pressure Cleaning Hose,4SH high pressure garden hose |
||

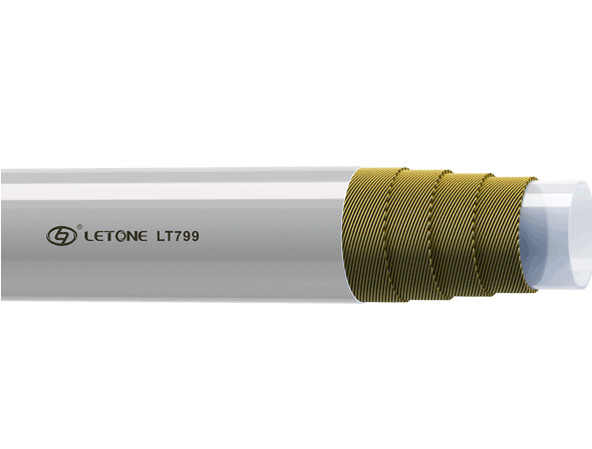

LT799 4SH Ultra high pressure resin hose water jet applications
LT799 4SH Introduction
Ultra high pressure resin hose
Pressure range: 760 ~ 1400 bar (15000 ~ 31900psi)
Features: small volume expansion under pressure
Features: high wear resistance
Features: hydraulic breaking and removal of dirt deposited on the surface
Nut size: special size for bolt fastening industry
Parameters
| Item No. | Dimension | ID | OD | WP | | |||||
| dash | inch | DN | mm | inch | mm | inch | bar | psi I | |
| •4SH-4-2200 | 5/32 | 4 | 4.0 | 0.157 | 9.90 | 0.390 | 2200 | 31900 | |
| •4SH-5-1800 | -3 | 3/16 | 5 | 5.1 | 0.201 | 11.8 | 0.465 | 1800 | 26100 |
| •4SH-6-1640 | -4 | 1/4 | 6 | 6.3 | 0.248 | 13.3 | 0.524 | 1640 | 23700 |
| •4SH-8-1500 | -5 | 5/16 | 8 | 8.2 | 0.323 | 15.6 | 0.614 | 1500 | 21700 |
| •4SH-10-1400 | -6 | 3/8 | 10 | 9.9 | 0.390 | 18.8 | 0.740 | 1400 | 20300 |
| 4SH-12-1300 | -8 | 1/2 | 12 | 12.8 | 0.504 | 21.6 | 0.850 | 1300 | 18800 |
| 4SH-20-1040 | -12 | 3/4 | 20 | 18.8 | 0.740 | 30.0 | 1.181 | 1040 | 15000 |
| 4SH-25-1040 | -16 | 1 | 25 | 24.8 | 0.976 | 38.3 | 1.508 | 1040 | 15000 |
