Product Details:
|
| Range Of Application: | Used In Very High Pressure Application Environment, Such As Cleaning The Inner Tube Of Heat Exchanger In Industries Such As Chemical And Oil Refining | Pressure Range: | 1400 ~1500 Bar (20300 ~ 21700 Psi) |
|---|---|---|---|
| Feature: | Improve The Flexibility Of The Hose | Joint: | Optional With Integrated Cartilage Dry Joint |
| High Light: | 2SH Ultra High Pressure Hose,1500 Bar Ultra High Pressure Hose,2SH high pressure water hose |
||

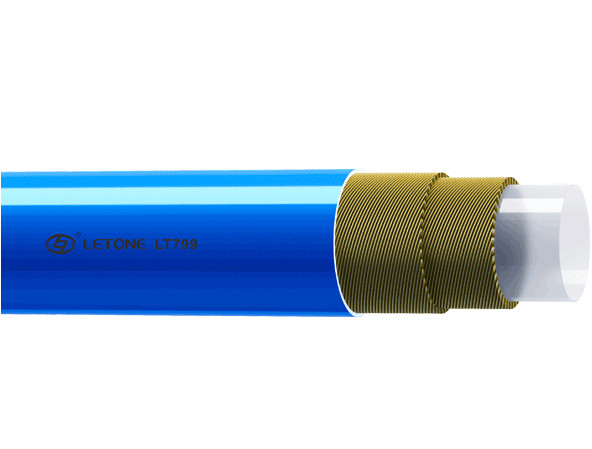

LT799 2SH Ultra high pressure resin hose high pressure application
LT799 2SH
Ultra high pressure resin hose
Application industry: used in very high pressure application environment, such as cleaning the inner tube of heat exchanger in industries such as chemical and oil refining
Pressure range: 1400 ~1500 bar (20300 ~ 21700 psi)
Features: high wear resistance
Features: small volume expansion under pressure
Features: Improve the flexibility of the hose
Joint: optional with integrated cartilage dry joint
Parameters
| Item No. | Dimension | ID | OD | WP | | |||||
| dash | inch | DN | mm | inch | mm | inch | bar | psi I | |
| • 2S-3-1040 | -2 | 1/8 | 3 | 3.5 | 0.138 | 7.2 | 0.283 | 1040 | 15000 |
| • 2S-4-1200 | - | 5/32 | 4 | 4.1 | 0.161 | 8.2 | 0.323 | 1200 | 17400 |
| • 2S-5-1040 | -3 | 3/16 | 5 | 5.2 | 0.205 | 9.8 | 0.386 | 1040 | 15000 |
| • 2S-6-1040 | -4 | 1/4 | 6 | 6.4 | 0.252 | 11.5 | 0.453 | 1040 | 15000 |
| • 2S-8-1040 | -5 | 5/16 | 8 | 7.9 | 0.311 | 13.7 | 0.539 | 1040 | 15000 |
| 2S-10-690 | -6 | 3/8 | 10 | 9.9 | 0.390 | 16.4 | 0.646 | 690 | 10000 |
| 2S-12-690 | -8 | 1/2 | 12 | 12.8 | 0.504 | 20.4 | 0.803 | 690 | 10000 |
Letone Growth: Value+Values
As one of leaders of global industrial hose, Letone always seeks innovation&excellence. Grasping strong production capability, advanced research strength and excellent service, Letone create the values to all of customers.
Independent R&D
3% of sales volume is put on R&D every year. Letone has established its own laboratory, Italian Bimal Impulse Test Stand, Mooney viscosity, a moving die rheometer, high and low temperature test box, an ozone test machine, a UV test machine and super high pressure burst test machine,etc. Letone has set up a R&D center for high pressure rubber hose cooperatively with Qingdao University of Science and Technology, with professional team of 36 technicians including 3 professors/doctoral supervisors, 6 senior engineer and technicians.Letone has mastered the full set of core technology for manufacturing hydraulic rubber hose and obtained 9 national invention patents and 23 utility model patents. It has been the main enterprise unit for drafting several technical standards of China rubber hose industry.
International Trade
Letone has a perfect set of international trade system, ranging from international trade marking to international trade negotiation and from domestic one-step service to overseas localization service. Letone's international trade markets have been expended across Asia, Africa,USA and other developing counties steadily and have been successfully extended into Europe, America and Australia. Letone is changing the way business in done.
Technical Service
Letone believes the value of brand, which originates from not only excellent products and solutions, but also considerate pre-sales & after-sales technical services.So, we have set up a team with hundreds of technical engineers to resolve a series of problems during project consultation, on-site surveys, sample analysis, program design, installation, commissioning and maintenance guidance, which can ensure that each link is docking in pace with customers and timely solve customer needs.
