Product Details:
|
| Tube: | Black Conducive NBR | Applications: | Fuel And Oil Suction And Discharge For Up To 50% Aromatic Content. Designed For Heavy Duty Applications |
|---|---|---|---|
| Cover: | Black Conductive CR-abrasion, Ozone And Hydrocarbon Resistant | Working Pressure: | Constant Pressure-20bar(300psi) |

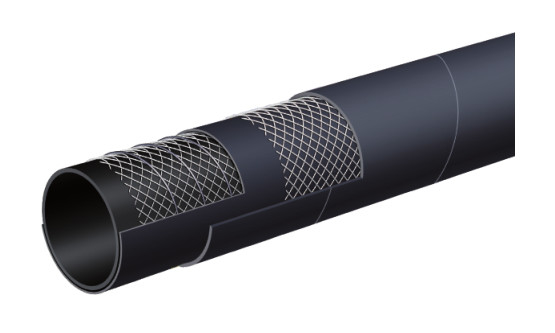

| Temperature Range: | -30℃(-22°F)to +80℃(+176°F) | Reinforcement: | High Tensile Textile Cords, Steel Helix Wires And Static Wire |
| High Light: | 300PSI Black Oil Fuel Hose,300PSI Black S&D Hose,20 Bar S&D Hose |
||
| Specifications | ||||||||
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | Max.W.P.(psi) | Vacuum HG (in.) | Min.B.R. (mm) | W. (kg/m) |
| LT1213-200 | 2 | 51 | 2.48 | 63 | 300 | 30 | 8 | 1.64 |
| LT1213-300 | 3 | 76 | 3.54 | 90 | 300 | 27 | 12 | 2.63 |
| LT1213-400 | 4 | 102 | 4.57 | 116 | 300 | 27 | 16 | 3.62 |
| LT1213-600 | 6 | 152 | 6.69 | 170 | 300 | 24 | 24 | 8.33 |
