Product Details:
|
| Tube: | Black NBR-hot Tar And Asphalt Resistant | Applications: | Hot Tar And Asphalt Suction And Discharge Service |
|---|---|---|---|
| Cover: | Black CSM - Abrasion, Ozone And Hot Tar Resistant | Working Pressure: | -10Bar(150PSI) |

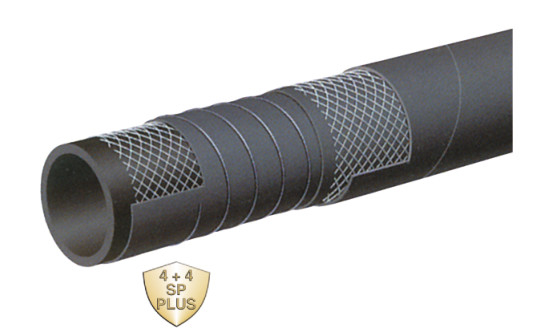

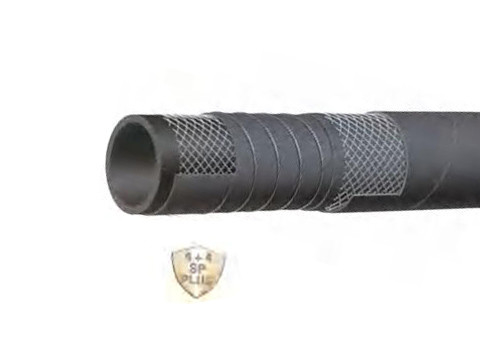

| Temperature Range: | -20℃(-4°F)to +180℃(+356°F) | Reinforcement: | High Tensile Textile Cords With Steel Helix Wires |
| High Light: | 150PSI Oil Fuel Hose,150PSI S&D Hose,S&D Hot Tar & Asphalt Hose |
||
| Specifications | |||||||||
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | Wall Thickness (mm) | Max.W.P.(psi) | Vacuum HG (in.) | Min.B.R. (mm) | W. (kg/m) |
| LT1216-200 | 2 | 51 | 2.72 | 69 | 9 | 150 | 30 | 10 | 2.44 |
| LT1216-300 | 3 | 76 | 3.78 | 96 | 10 | 150 | 27 | 15 | 4.00 |
| LT1216-400 | 4 | 102 | 4.80 | 122 | 10 | 150 | 27 | 20 | 5.31 |
Competitive Advantage:
