Product Details:
|
| Application: | Floating Offshore Oil Hose Is Designed For Transporting Crude Oil And Liquid Petroleum Products Between Loading And Unloading Vessels On Offshore Mooring Systems. | Main Carcass Main Liner/Inner Tube:: | Smooth, Oil, Fuel Resistant Pure Seamless And Extruded Acrylonitrile-Butadiene-Rubber (NBR); Safety Liner |
|---|---|---|---|
| Casing:: | Smooth Black Synthetic Rubber, Abrasion, Oil, Sea Water And Sunlight Resistant. Spiral Orange Band. | Fittings: | End Connections Built In During Manufacturing. ASME B 16.5 150 Lb Or 300 Lb Weld Neck Flat Or Raised Face As Per Requirement. |
| Testing:: | All Tests As Per GMPHOM 2009 And Customer Details. | Features:: | 1. Connects To Rear Manifold And Tail Pipe 2. Lifting Lugs Shall Be Able To Withstand Loads, Minimum Breaking Load 12” = 100KN 16” = 150KN 20” = 200KN 3. Rated Working Pressure |
LTXXX

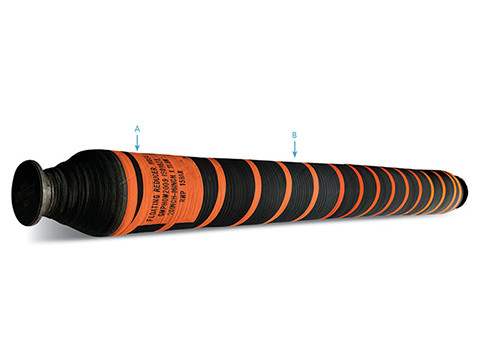

Necked Floating Oil Hose
Application: Floating offshore oil hose is designed for transporting crude oil and liquid petroleum products between loading and unloading vessels on offshore mooring systems.
Main Carcass Main Liner/Inner Tube: Smooth, oil, fuel resistant pure seamless and extruded Acrylonitrile-Butadiene-Rubber (NBR); Safety Liner
Casing: Smooth black synthetic rubber, abrasion, oil, sea water and sunlight resistant. Spiral orange band.
Fittings: End connections built in during manufacturing. ASME B 16.5 150 lb or 300 lb weld neck flat or raised face as per requirement.
Testing: All tests as per GMPHOM 2009 and customer details.
Features: 1. Connects to rear manifold and tail pipe 2. Lifting lugs shall be able to withstand loads, minimum breaking load 12” = 100KN 16” = 150KN 20” = 200KN 3. Rated working pressure
| Reduced diameter hoses can be provided to match other hoses including | |||
| Nominal Inner Diameter (mm) | 200/150(8/6”) | 250/200(10/8") | 300/250(12/10”) |
| 400/300(16/12”) | 500/400(20/16”) | 600/500(24/20”) | |
| The reduction can be done on the hose body (which can be on the reduced steel core), or on the larger inner diameter end of the end fitting, or a combination of these reduction processes can be used to reduce the hose, at which time the weight and size will change. | |||
Note: The actual parameters are subject to the latest atlas
