Product Details:
|
| Brand: | LETONE | Inner Layer: | Corrugated PTFE |
|---|---|---|---|
| Reinforcement Layer: | High Strength 304 Stainless Steel Wire Braid | Outer Layer: | High Strength 304 Stainless Steel Wire Braid |
| Temperature Range: | -60 ℃ ~ + 260 ℃ (-76 ℉ ~ + 500 ℉) | Reference Standard: | EN12115 |
| High Light: | 345PSI Stainless Steel Corrugated Hose,PTFE 2 Inch Corrugated Tubing,345PSI 2 Inch Corrugated Tubing |
||

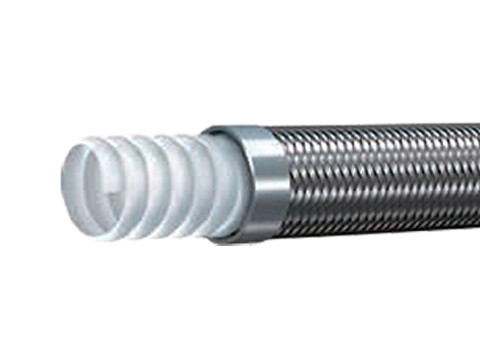

LT400C Corrugated PTFE hose
Application:This product has the characteristics of high temperature resistance, chemical corrosion resistance, non-adhesive substances, etc., can be customized conductive / insulation and food-grade (in accordance with FDA standards) inner layer. Suitable for conveying compressed air, ester materials (such as grease), viscous materials (such as glue), corrosive chemicals, and oil and other fluids at high temperatures
Inner layer:Corrugated PTFE
Reinforcement layer:high strength 304 stainless steel wire braid
Outer layer:high strength 304 stainless steel wire braid
Temperature range:-60 ℃ ~ + 260 ℃ (-76 ℉ ~ + 500 ℉)
Parameter
| I.D. | O.D. | W.P. | MIN.B.P. | W.T. | |||
| Dash | In. | mm | mm | MPa | psi | mm | g/m |
| -8 | 1/2 | 13 | 18.80 | 10.3 | 1500 | 25 | 280 |
| -10 | 5/8 | 16 | 22.1 | 8.3 | 1200 | 51 | 330 |
| -12 | 3/4 | 19 | 24.65 | 6.9 | 1000 | 64 | 400 |
| -16 | 1 | 25 | 32.77 | 4.6 | 670 | 89 | 550 |
| -20 | 1 1/4 | 32 | 40.72 | 3.4 | 525 | 127 | 690 |
| -24 | 1 1/2 | 38 | 48.25 | 3.0 | 450 | 152 | 890 |
| -32 | 2 | 51 | 61.5 | 2.3 | 345 | 200 | 1240 |
