Product Details:
|
| Brand: | LETONE | Inner Layer: | PTFE |
|---|---|---|---|
| Reinforcement Layer: | High Strength 304 Stainless Steel Wire Braid | Outer Layer: | High Strength 304 Stainless Steel Wire Braid |
| Temperature Range: | -60 ℃ ~ + 260 ℃ (-76 ℉ ~ + 500 ℉) | Reference Standard: | EN12115 |
| High Light: | 4000 Psi Chemical Resistant Hose,3 16 Inch Chemical Resistant Hose,3 16 Inch corrosion resistant hose |
||

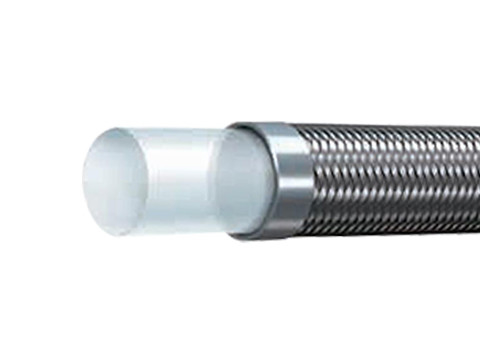

LT400S PTFE hose
Application: The inner wall of the product is smooth, with high temperature resistance, chemical corrosion resistance, non-adhesive substances and other characteristics, and can be customized conductive / insulation and food-grade (in accordance with FDA standards) inner layer. Suitable for conveying compressed air, ester materials (such as grease), viscous materials (such as glue), corrosive chemicals, and oil and other fluids at high temperatures
Inner layer: PTFE
Reinforcement layer: high strength 304 stainless steel wire braid
Outer layer: high strength 304 stainless steel wire braid
Temperature range: -60 ℃ ~ + 260 ℃ (-76 ℉ ~ + 500 ℉)
Parameter
| I.D. | O.D. | W.P. | MIN.B.P. | W.T. | |||
| Dash | In. | mm | mm | MPa | psi | mm | g/m |
| -3 | 3/16 | 5 | 7.86 | 27.5 | 4000 | 51 | 90 |
| -4 | 1/4 | 6. | 8.64 | 24.1 | 3260 | 76 | 90 |
| -5 | 5/16 | 8 | 11.05 | 20.7 | 3000 | 102 | 130 |
| -6 | 3/8 | 10 | 12.65 | 18.3 | 2600 | 127 | 150 |
| -8 | 1/2 | 13 | 15.40 | 16.1 | 2300 | 140 | 200 |
| -10 | 5/8 | 16 | 18.40 | 13.8 | 2000 | 165 | 270 |
| -12 | 3/4 | 19 | 22.1 | 11.4 | 1600 | 203 | 330 |
| -16 | 1 | 25 | 29.75 | 6.9 | 1000 | 305 | 520 |
