Product Details:
|
| Brand: | LETONE | Inner Layer: | EPDM |
|---|---|---|---|
| Reinforcement Layer: | High Strength Textile Rope | Outer Layer: | Wear-resistant, Weather-resistant EPDM |
| Temperature Range: | -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) | Reference Standard: | EN12115 |
| High Light: | Conveying Air Chemical Resistant Hose,6 Mpa Chemical Resistant Hose |
||

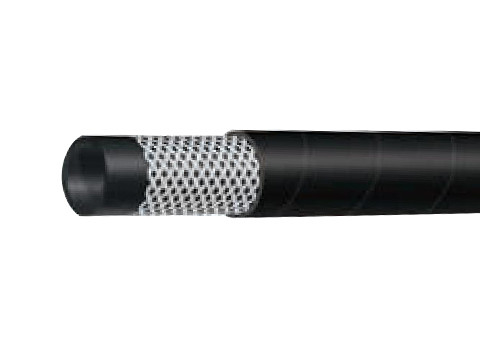

LT403 EPDM multifunctional hose
Application: suitable for conveying air, water, non-aggressive chemicals, food, etc
Inner layer: EPDM
Reinforcement layer: high strength textile rope
Outer layer: wear-resistant, weather-resistant EPDM
Temperature range: -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)
Parameter
| I.D. | O.D. | W.P. | W.P. | W.T. | ||||
| Dash | In. | mm | mm | MPa | psi | MPa | psi | g/m |
| -4 | 1/4 | 6 | 13 | 2 | 300 | 6 | 900 | 160 |
| -5 | 5/16 | 8 | 15 | 2 | 300 | 6 | 900 | 200 |
| -6 | 3/8 | 10 | 17 | 2 | 300 | 6 | 900 | 220 |
| -8 | 1/2 | 13 | 21 | 2 | 300 | 6 | 900 | 340 |
| -10 | 5/8 | 16 | 25 | 2 | 300 | 6 | 900 | 450 |
| -12 | 3/4 | 19 | 29 | 2 | 300 | 6 | 900 | 570 |
| -16 | 1 | 25 | 35 | 2 | 300 | 6 | 900 | 740 |
| -20- | 1 1/4 | 32 | 44 | 2 | 300 | 6 | 900 | 920 |
| -24 | 11/2 | 38 | 52 | 2 | 300 | 6 | 900 | 1080 |
| -32 | 2 | 51 | 66 | 2 | 300 | 6 | 900 | 1650 |
