Product Details:
|
| Application: | Suitable For Use Under Cryogenic Petroleum Base Hydraulic Oil | Tube: | The Hose Is Composed Of Special Composite Rubber Inner Glue With Excellent Resistance To |
|---|---|---|---|
| Reinforcement: | Ultra-low Temperature And Good Oil Resistance, Steel Wire Braid Strengthening Layer | Cover: | Special Composite Rubber Outer Rubber With Excellent Resistance To Ultra-low Temperature And Good Resistance To Weather |
| Temperature Range：: | 55 ℃ ~ 100 ℃ | Brand：: | LETONE |
| High Light: | oil resistance Steel Wire Spiral Hydraulic Hose,LETONE Steel Wire Spiral Hydraulic Hose,LETONE oil hydraulic hose |
||

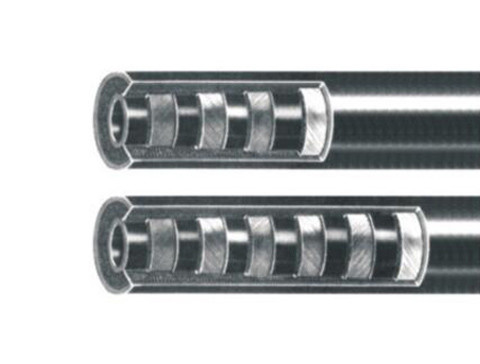

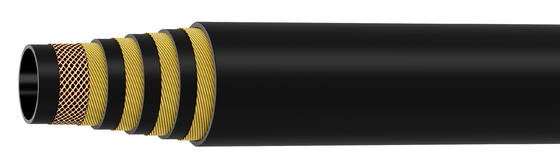

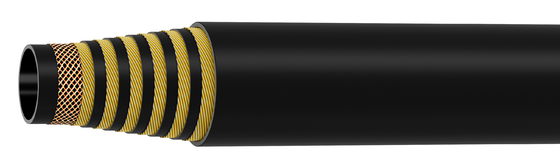

LT591 Super Low Temperature Resistant Wire Spiral Hydraulic Rubber Hose
A hose consists of three basic components:
• The tube is made from several different rubber compounds and composites that must chemically resist
the fluid being conveyed. The tube must also resist corrosion, deterioration and the effects of high or
low temperatures.
• The reinforcement must resist fluid pressures, pressure spikes and hose bursts. It determines the
working pressure of the hose. The reinforcement can be a braid or spiral wrap and can be made of
natural fibers, synthetic materials or steel wire. Some hoses use a combination of fiber and steel wire or
multiple layers of steel wire braids or spirals.
• The cover is designed to protect the tube and reinforcement from heat, abrasion, corrosion and
environmental deterioration. The cover can be made from synthetic rubber, fiber braids or a
combination of both depending on the application.
Application: suitable for use under cryogenic petroleum base hydraulic oil
Tube: The hose is composed of special composite rubber inner glue with excellent resistance to
Reinforcement: ultra-low temperature and good oil resistance, steel wire braid strengthening layer
Cover: special composite rubber outer rubber with excellent resistance to ultra-low temperature and good resistance to weather
Temperature Range: 55 ℃ ~ 100 ℃
Parameter
| SIZE (Dash) | SIZE (in.) | I .D. (mm) | O.D. (mm) | Max.W.P. | B.P. | Min. B.R. | |
| Min | Max | Max | MPa | MPa | (mm) | ||
| 8 | 1/2 -4S | 12.8 | 13.5 | 21.0 | 42 | 168 | 190 |
| 10 | 5/8-4S | 15.9 | 16.6 | 24.6 | 42 | 168 | 200 |
| 12 | 3/4-4S | 18.8 | 19.6 | 29.2 | 42 | 168 | 224 |
| 16 | 1 - 4 S | 25.0 | 25.8 | 36.0 | 42 | 168 | 272 |
| 20 | 11/4-4S | 31.6 | 32.6 | 42.9 | 35 | 140 | 420 |
| 24 | 11/2-4S | 37.7 | 38.8 | 49.8 | 35 | 140 | 500 |
| 20 | 11/4-6S | 31.6 | 32.6 | 48.0 | 42 | 168 | 420 |
| 24 | 11/2-6S | 37.7 | 38,8 | 54.0 | 42 | 168 | 500 |
