Product Details:
|
| Application: | Suitable For Using Oil Base Hydraulic Oil | Tube: | Inner Tube Of NBR Tube |
|---|---|---|---|
| Reinforcement: | 4 Layers Or 6 Layers Of Interlaced High-strength Steel Wire | Cover: | Narrow Cloth Black Non-stripping Outer Rubber |
| Temperature Range：: | -40℃~+121℃ (-40℉~+250℉) | Standard: | ISO18752-DC Standard |
| High Light: | spiral Super Artery Hose,NBR Tube Super Artery Hose,Super Artery nbr rubber hose |
||

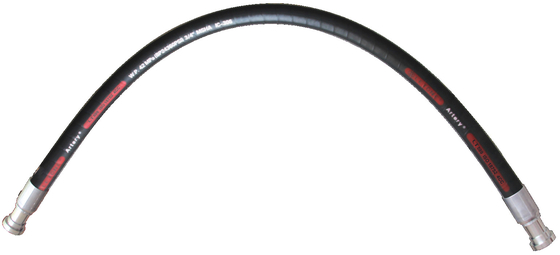

LT599 Artery Wire spiral hydraulic hose
Application: suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
Tube: Inner tube of NBR tube

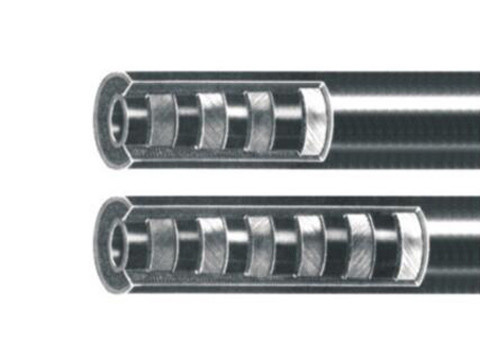

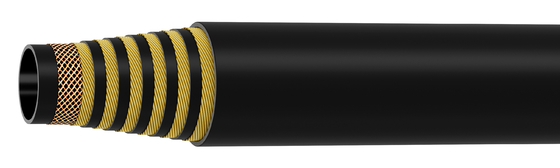

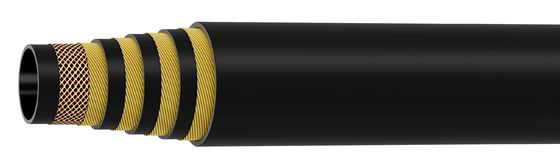

Reinforcement: 4 layers or 6 layers of interlaced high-strength steel wire
Cover: Narrow cloth black non-stripping outer rubber
Temperature Range: -40℃~+121℃ (-40℉~+250℉)
Feature: Oil, heat and aging resistant,high compression resistance,no less than one million times pulses,Weather resistant for more than 3 years
Parameter
| SIZE (Dash) | SIZE (in.) | I.D. (mm) | O.D. (mm) | Max.W.P. | Min.B.P. | Min.B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 6 | 1/4-4S | 6.0 | 6.8 | 18.7 | 70 | 280 | 120 |
| 10 | 3/8-4S | 9.3 | 10.1 | 22.2 | 56 | 224 | 150 |
| 13 | 1/2-4S | 12.8 | 13.5 | 25.0 | 42 | 168 | 190 |
| 16 | 5/8-4S | 15.9 | 16.6 | 28.4 | 42 | 168 | 200 |
| 19 | 3/4-4S | 18.8 | 19.6 | 32.3 | 42 | 168 | 224 |
| 25 | 1-4S | 25.0 | 25.8 | 39.3 | 42 | 168 | 272 |
| 32 | 1-1/4-4S | 31.6 | 32.6 | 46.0 | 35 | 140 | 370 |
| 32 | 1-1/2-4S | 37.8 | 38.8 | 53.4 | 29 | 116 | 540 |
| 38 | 2-4S | 50.7 | 52 | 68.5 | 25 | 100 | 660 |
| 51 | 1 1/4-6S | 31.6 | 32.6 | 50.8 | 42 | 168 | 420 |
| 51 | 1 1/2-6S | 37.7 | 38.8 | 57.3 | 42 | 168 | 500 |
| 51 | 2-6S | 51.6 | 51.8 | 71.5 | 42 | 168 | 650 |
