Product Details:
|
| Application: | Suitable For Using Oil Base Hydraulic Oil, Is Suitable For The Harsh Conditions Of High Temperature And Medium Pressure Hose | Tube: | CR/NBR Synthetic Rubber |
|---|---|---|---|
| Reinforcement: | Multispiral High Tensile Super Flexible Steel Wire, Four Plies≥ 1 Million Impulse Cycles | Cover: | Skiving-free Black Narrow Cloth Texture Hose Cover Made Of Anti-aging Synthetic Rubber |
| Temperature Range：: | -40℃~+121℃(-40℉~+250℉) | Standard: | ISO 18752-DC |
| High Light: | LTSA599 Super Artery Hose,LTSA599 Spiral Wire Hose,Low Bending Radius Spiral Wire Hose |
||

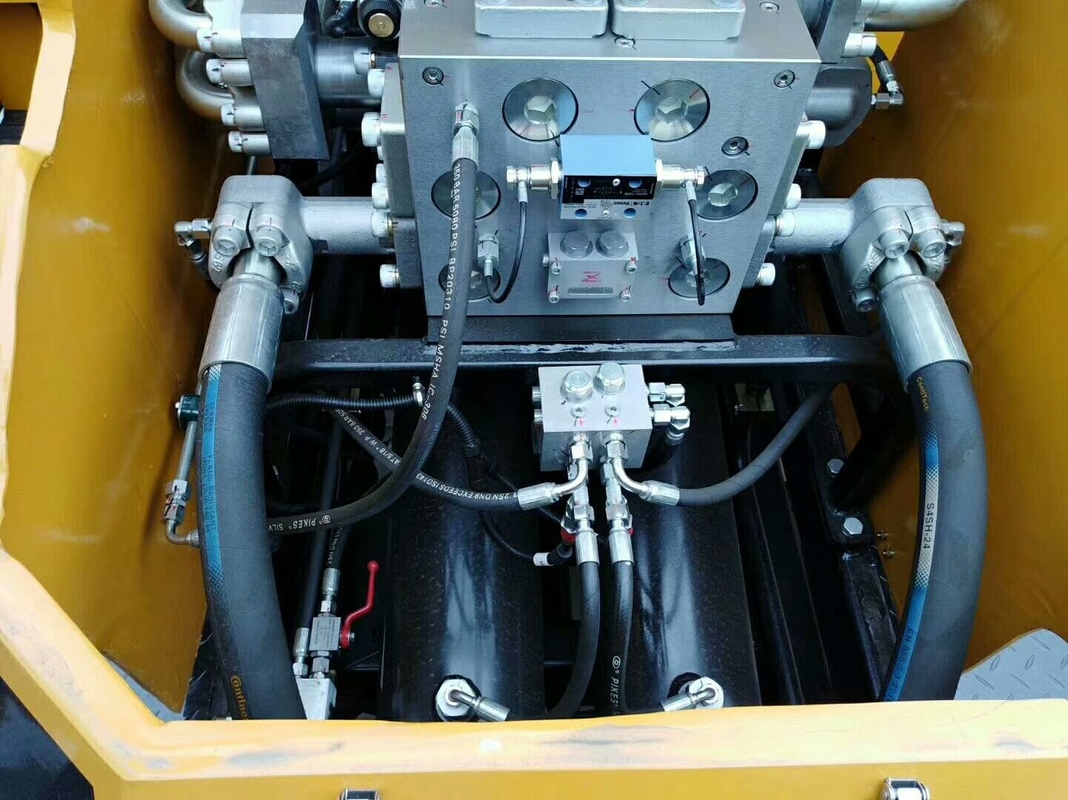

LTSA599 Super Artery Steel Wire Spiral Hydraulic Hose
Application: Suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
Tube: CR/NBR synthetic rubber
Reinforcement: Multispiral high tensile super flexible steel wire, four plies≥ 1 million impulse cycles
Cover: Skiving-free black narrow cloth texture hose cover made of anti-aging synthetic rubber
Temperature Range: -40℃~+121℃(-40℉~+250℉)
Standard: ISO 18752-DC
Features: Low bending radius; high pressure ; long service life ( weather resistant for more than 5 years and warrantied for 2 years with Letone specific hose connectors)
Parameter
| TYPE | SIZE | I.D. | W.P. | B.P. | Min.B.R. |
| (in.) | (mm) | (MPa) | (MPa) | (mm) | |
| SA599-4DC | 3/8' | 9.5 | 56 | 224 | 100 |
| SA599-4DC | 1/2' | 12.7 | 42 | 168 | 140 |
| SA599-4DC | 5/8' | 15.9 | 42 | 168 | 180 |
| SA599-4DC | 3/4' | 19 | 42 | 168 | 200 |
| SA599-4DC | 1' | 25.4 | 42 | 168 | 250 |
| SA599-4DC | 11/4' | 31.8 | 35 | 140 | 400 |
| SA599-4DC | 11/2' | 38.1 | 29 | 116 | 480 |
| SA599-4DC | 2' | 50.8 | 25 | 100 | 650 |
| SA599-6DC | 11/4' | 31.8 | 42 | 168 | 400 |
| SA599-6DC | 11/2' | 38.1 | 42 | 168 | 480 |
| SA599-6DC | 2" | 50.8 | 42 | 168 | 650 |
