Product Details:
|
| Applications: | Suitable For Conveying Petroleum Oil And Water-based And Biodegradable Hydraulic Oil, To Meet Industrial Demands For General | Tube: | Black Heat-resistant Oil Synthetic Rubber |
|---|---|---|---|
| Reinforcement: | One Or Two Layers Of Super Flexible High-strength Steel Wire | Cover: | One Or Two Layers Of Super-soft High-strength Steel Wire |
| Temperature Range: | -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) | Brand: | LETONE |
| High Light: | En857 Wire Braided Hose,Petroleum Oil Hydraulic Hose Pipe 1 Inch,1 Inch Wire Braided Hose |
||
LT683 EN857 SC Wire Braid Hydraulic Rubber Hose

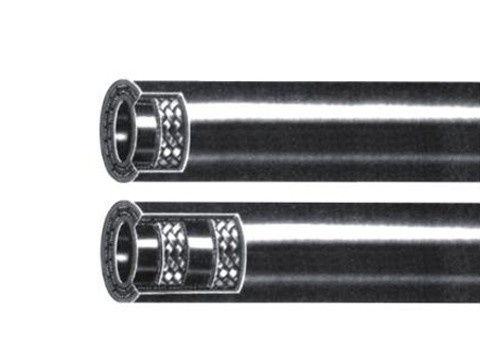

Double wire braid hydraulic hose construction: It is made of synthetic rubber lining of oil resistant, two wire braid reinforcement separated by synthetic rubber layer, and synthetic rubber cover that is oil, fuel, weather and abrasion resistant.
Parameter
| SIZE (Dash) | SIZE (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min.B.P. | Min.B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 6 | 1/4-1 | 6.1 | 6.9 | 13.5 | 22.5 | 90 | 75 |
| 8 | 5/16-1 | 7.7 | 8.5 | 14.5 | 21.5 | 86 | 85 |
| 10 | 3/8-1 | 9.3 | 10.1 | 16.9 | 18 | 72 | 90 |
| 13 | 1/2-1 | 12.3 | 13.5 | 20.4 | 16 | 64 | 130 |
| 16 | 5/8-1 | 15.5 | 16.7 | 23.0 | 13 | 52 | 150 |
| 19 | 3/4-1 | 18.6 | 19.8 | 26.7 | 10.5 | 42 | 180 |
| 25 | 1-1 | 25.0 | 26.4 | 34.9 | 8.8 | 35.5 | 230 |
| 6 | 1/4-2 | 6.1 | 6.9 | 14.2 | 40 | 160 | 75 |
| 8 | 5/16-2 | 7.7 | 8.5 | 16.0 | 35 | 140 | 85 |
| 10 | 3/8-2 | 9.3 | 10.1 | 18.3 | 33 | 132 | 90 |
| 13 | 1/2-2 | 12.3 | 13.5 | 21.5 | 27.5 | 110 | 130 |
| 16 | 5/8-2 | 15.5 | 16.7 | 24.7 | 25 | 100 | 170 |
| 19 | 3/4-2 | 18.6 | 19.8 | 28.6 | 21.5 | 86 | 200 |
| 25 | 1-2 | 25.0 | 26.4 | 36.6 | 16.5 | 66 | 250 |
