Product Details:
|
| Applications: | Suitable For Conveying Petroleum Oil And Water-based And Biodegradable Hydraulic Oil, To Meet Industrial Demands For High Temperature Pipe | Tube: | Black Heat-resistant Oil Synthetic Rubber |
|---|---|---|---|
| Reinforcement: | One Or Two Layers Of Super Flexible High-strength Steel Wire | Cover: | Black Oil-resistant, Weather-resistant, Wear-resistant Synthetic Rubber |
| Temperature Range: | -40 ° C ~ + 135 ° C (-40 ° F ~ + 275 ° F) | Brand: | LETONE |
| High Light: | Oil Wire Braid Hydraulic Hose,3/16" Oil Wire Braid Hydraulic Hose,1" Oil Wire Braid Hydraulic Hose |
||

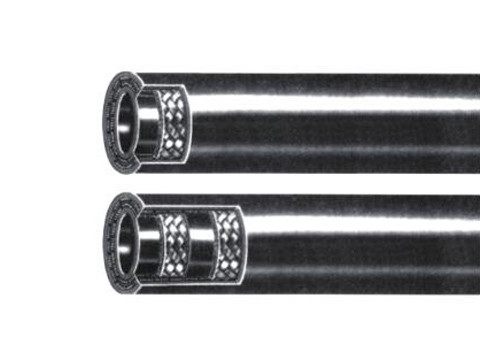

LT684 Heat Resistant oil wire braided rubber hose
Parameter
| SIZE (Dash) | SIZE (in.) | I.D. | Max.W.P. | Min.B.P. | Min.B.R. | |
| Min | Max | (MPa) | (MPa) | (mm) | ||
| 5—1 | 3/16—1 | 4.6 | 5.4 | 21.0 | 84.0 | 90 |
| 6—1 | 1/4—1 | 6.2 | 6.9 | 19.3 | 77.0 | 100 |
| 8—1 | 5/16—1 | 7.7 | 8.5 | 17.5 | 70.0 | 115 |
| 10—1 | 3/8—1 | 9.3 | 10.1 | 15.8 | 63.0 | 130 |
| 13—1 | 1/2—1 | 12.3 | 13.5 | 14.0 | 56.0 | 180 |
| 16—1 | 5/8—1 | 15.5 | 16.7 | 10.5 | 42.0 | 200 |
| 19—1 | 3/4—1 | 18.6 | 19.8 | 8.7 | 35.0 | 240 |
| 25—1 | 1—1 | 25.0 | 26.4 | 7.0 | 28.0 | 300 |
| 32—1 | 1 1/4—1 | 31.4 | 33.0 | 4.3 | 17.5 | 420 |
| 38—1 | 1 1/2—1 | 37.7 | 39.3 | 3.5 | 14.0 | 500 |
| 51—1 | 2—1 | 50.4 | 52.0 | 2.6 | 10.5 | 630 |
| 5—2 | 3/16—2 | 4.6 | 5.4 | 35.0 | 140.0 | 90 |
| 6—2 | 1/4—2 | 6.2 | 6.9 | 35.0 | 140.0 | 100 |
| 8—2 | 5/16—2 | 7.7 | 8.5 | 29.7 | 119.0 | 115 |
| 10—2 | 3/8—2 | 9.3 | 10.1 | 28.0 | 112.0 | 130 |
| 13—2 | 1/2—2 | 12.3 | 13.5 | 24.5 | 98.0 | 180 |
| 16—2 | 5/8—2 | 15.5 | 16.7 | 19.2 | 77.0 | 200 |
| 19—2 | 3/4—2 | 18.6 | 19.8 | 15.7 | 63.0 | 240 |
| 25—2 | 1—2 | 25.0 | 26.4 | 14.0 | 56.0 | 300 |
| 32—2 | 1 1/4—2 | 31.4 | 33.0 | 11.3 | 45.0 | 420 |
| 38—2 | 1 1/2—2 | 37.7 | 39.3 | 8.7 | 35.0 | 500 |
| 51—2 | 2—2 | 50.4 | 52.0 | 7.8 | 31.5 | 630 |
