Product Details:
|
| Applications: | Suitable For Hydraulic Support | Tube: | Black Oil-resistant Synthetic Rubber |
|---|---|---|---|
| Reinforcement: | One Or More Layers Of Super Flexible High-strength Steel Wire | Cover: | Black Oil-resistant, Weather-resistant, Wear-resistant Synthetic Rubber |
| Temperature Range: | -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) | Brand: | LETONE |
| High Light: | Mine 3 8 Rubber Hose,LETONE Steel Braided Hydraulic Hose,LETONE 3 8 Rubber Hose |
||

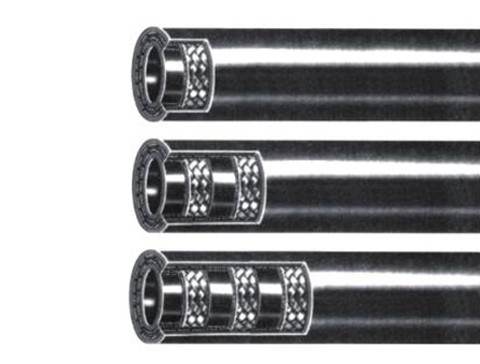

LT685 MT98 Mine steel Wire Braided Rubber Hose
Braided hydraulic hoses are fundamental fluid conveyance solutions for various equipment and applications with wide operating pressure ranges, optimal levels of abrasion resistance, long-lasting durability and high-performance transfer capabilities.
Common applications include:
Hydraulic system service with petroleum and water-based fluids, for general industrial service.
Petroleum and fire-resistant hydraulic fluids, fuel and lubricating oils, gasoline, water and other industrial fluids
Logging, construction, mining and other off highway applications
Parameter
| SIZE (Dash) | SIZE (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min.B.P. | Min.B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 6—1 | 1/4—1 | 5.8 | 6.5 | 15.4 | 32.0 | 80 | 100 |
| 8—1 | 5/16—1 | 7.8 | 8.5 | 17.4 | 28.0 | 70 | 115 |
| 10—1 | 3/8—1 | 9.8 | 10.5 | 19.3 | 25.6 | 64 | 130 |
| 13—1 | 1/2—1 | 12.8 | 13.5 | 23.1 | 22.4 | 56 | 180 |
| 16—1 | 5/8—1 | 15.8 | 16.6 | 26.3 | 16.8 | 42 | 205 |
| 19—1 | 3/4—1 | 18.8 | 19.8 | 29.2 | 14.4 | 36 | 240 |
| 22—1 | 7/8—1 | 21.8 | 22.8 | 32.2 | 12.8 | 32 | 280 |
| 25—1 | 1—1 | 24.8 | 25.8 | 35.8 | 11.2 | 28 | 300 |
| 32—1 | 1 1/4—1 | 31.6 | 33.6 | 44.2 | 9.0 | 22.5 | 420 |
| 38—1 | 1 1/2—1 | 37.7 | 39.8 | 51.2 | 7.0 | 17.5 | 500 |
| 45—1 | 1 3/4—1 | 44.6 | 45.6 | 57.2 | 5.0 | 12.5 | 550 |
| 51—1 | 2—1 | 50.7 | 52.0 | 64.7 | 3.0 | 7.5 | 630 |
| 6—2 | 1/4—2 | 5.8 | 6.5 | 17.2 | 56.0 | 140 | 100 |
| 8—2 | 5/16—2 | 7.8 | 8.5 | 19.2 | 48.0 | 120 | 115 |
| 10—2 | 3/8—2 | 9.8 | 10.5 | 21.1 | 40.0 | 100 | 130 |
| 13—2 | 1/2—2 | 12.8 | 13.5 | 24.9 | 36.0 | 90 | 180 |
| 16—2 | 5/8—2 | 15.8 | 16.6 | 28.1 | 32.0 | 80 | 205 |
| 19—2 | 3/4—2 | 18.8 | 19.8 | 31 | 25.0 | 62 | 240 |
| 22—2 | 7/8—2 | 21.8 | 22.8 | 34 | 22.0 | 55 | 280 |
| 25—2 | 1—2 | 24.8 | 25.8 | 37.6 | 21.0 | 52 | 300 |
| 32—2 | 1 1/4—2 | 31.6 | 33.6 | 46.2 | 17.0 | 42.5 | 420 |
| 38—2 | 1 1/2—2 | 37.7 | 39.8 | 52.2 | 12.0 | 30 | 500 |
| 45—2 | 1 3/4—2 | 44.6 | 45.6 | 59.2 | 9.0 | 22.5 | 55 |
| 51—2 | 2—2 | 50.7 | 52.0 | 65.2 | 8.0 | 20 | 630 |
| 8—3 | 5/16—3 | 7.8 | 8.5 | 20.8 | 50.0 | 125 | 115 |
| 10—3 | 3/8—3 | 9.8 | 10.5 | 22.7 | 45.0 | 112.5 | 130 |
| 13—3 | 1/2—3 | 12.8 | 13.5 | 26.7 | 40.0 | 100 | 180 |
| 16—3 | 5/8—3 | 15.8 | 16.6 | 29.9 | 35.0 | 87.5 | 205 |
| 19—3 | 3/4—3 | 18.8 | 19.8 | 32.8 | 28.0 | 70.5 | 240 |
| 22—3 | 7/8—3 | 21.8 | 22.8 | 35.8 | 25.0 | 62.5 | 280 |
| 25—3 | 1—3 | 24.8 | 25.8 | 38.8 | 24.0 | 60.5 | 300 |
| 32—3 | 1 1/4—3 | 31.6 | 33.6 | 48.8 | 19.0 | 47.5 | 420 |
| 38—3 | 1 1/2—3 | 37.7 | 39.8 | 54.2 | 15.0 | 37.5 | 500 |
