Product Details:
|
| Applications: | It Is Suitable For Conveying Petroleum-based Hydraulic Oil | Inner Tube: | Nylon |
|---|---|---|---|
| Reinforcement: | One Or Two Layers Of Steel Wire Braid | Outer Layer: | Oil-resistant, Aging-resistant, Weather-resistant Black Polyurethane |
| Temperature Range: | -40℃ ~ +100℃（-40℉ ~ +212℉） | Brand: | LETONE |

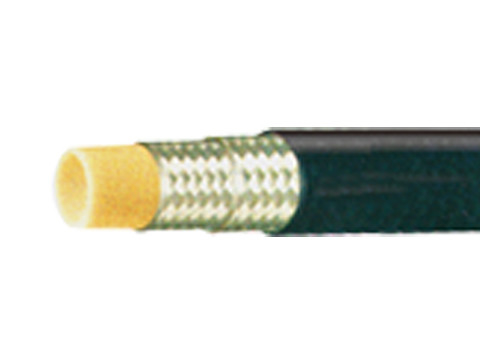

LT794 Aramid fiber braided high-pressure resin hose
Parameter
| I.D. | O.D. | W.P. | W.P. | MIN.B.P. | W.T. | ||||
| Dash | In. | mm | mm | MPa | psi | MPa | psi | mm | g/m |
| -3 | 3/16-1 | 4.8 | 10.3 | 35 | 5070 | 140 | 20280 | 35 | 65 |
| -4 | 1/4-2 | 6.3 | 12.3 | 37.5 | 5440 | 150 | 21760 | 40 | 90 |
| -5 | 5/16-2 | 7.9 | 14.3 | 32.5 | 4710 | 130 | 18840 | 45 | 115 |
| -6 | 3/8-2 | 9.5 | 16.7 | 28 | 4060 | 112 | 16240 | 60 | 145 |
| -8 | 1/2-2 | 12.7 | 22.5 | 35 | 5070 | 140 | 20280 | 80 | 290 |
| -10 | 5/8-2 | 15.9 | 24.5 | 22.5 | 3260 | 90 | 13040 | 120 | 290 |
| -12 | 3/4-2 | 19 | 28 | 17.5 | 2540 | 70 | 10160 | 140 | 345 |
| -16 | 1-2 | 25.4 | 34 | 15 | 2170 | 60 | 8680 | 160 | 450 |
