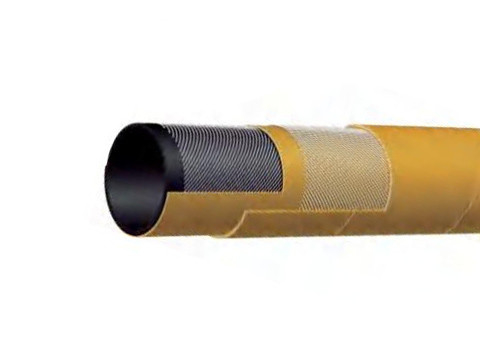

Product Details:
|
| Application: | Used In High Pressure And Oil Resistant Working Environments, Suitable For Mining, Quarry, Durable, Long Service Life And High Safety Level | Tube: | Black Extruded SBR Rubber, RMA Grade A, Resistant To Oil Mist |
|---|---|---|---|
| Reinforcement: | High Tension Winding Textile Rope | Cover: | Yellow SBR/NBR Rubber, Abrasion Resistant, Oxidizing, Fire Resistant And Aromatic Hydrocarbon Materials |
| Working Pressure: | Constant Pressure 20Bar (300PSI) | Temperature Range: | -30°C (-22°F) To +80°C (+176°F) |
| High Light: | Textile Rope High Pressure Air Hoses,20 Bar High Pressure Air Hoses,20 Bar oil resistant air hose |
||
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | MaxRec.W.P. (PSI) | Weight (kg/m) |
| LT803-050 | 1/2 | 13 | 0.83 | 21 | 300 | 0.33 |
| LT803-075 | 3/4 | 19 | 1.14 | 29 | 300 | 0.57 |
| LT803-100 | 1 | 25 | 1.38 | 35 | 300 | 0.71 |
| LT803-125 | 11/4 | 32 | 1.73 | 44 | 300 | 0.89 |
| LT803-150 | 11/2 | 38 | 1.97 | 50 | 300 | 1.04 |
| LT803-200 | 2 | 51 | 2.56 | 65 | 300 | 1.67 |
| LT803-250 | 21/2 | 63 | 3.11 | 79 | 300 | 2.31 |
| LT803-300 | 3 | 76 | 3.62 | 92 | 300 | 2.81 |
| LT803-400 | 4 | 102 | 4.65 | 118 | 300 | 3.68 |
