Product Details:
|

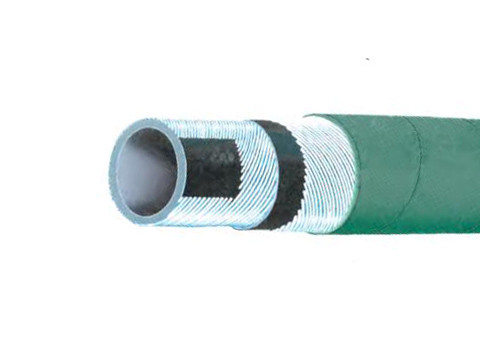

| Features: | The Hose Skeleton Layer Is Made Of Chemical Fiber Weaving, Winding, And The Tube Body Is Durable And Has High Pressure | Application: | Applications High Quality Air Hose For Heavy Duty And Mining Applications |
|---|---|---|---|
| Tube: | Black Extrusion SBR Rubber | Reinforcement: | The Hose Skeleton Layer Is Made Of Chemical Fiber Weaving, Winding, And The Tube Body Is Strong And Durable, And The Pressure Is High |
| Cover: | Green SBR-abrasion And Ozone-resistant Reinforcement Spiralled | Working Pressure: | Constant Pressure - 27 Bar (400PSI) |
| Temperature Range: | -22℉ （-40℃）to 176℉ (+80℃) | ||
| High Light: | 27 Bar High Temperature Compressed Air Hose,SBR Rubber Mining Hose,27 Bar Rubber Mining Hose |
||
| Specifications | ||||||
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | Max.W.P.(psi) | W. (kg/m) |
| LT804-075 | 3/4 | 19 | 1.14 | 29 | 400 | 0.57 |
| LT804-100 | 1 | 25 | 1.38 | 35 | 400 | 0.71 |
| LT804-125 | 11/4 | 32 | 1.73 | 44 | 400 | 0.92 |
| LT804-150 | 11/2 | 38 | 1.97 | 50 | 400 | 1.06 |
| LT804-200 | 2 | 51 | 2.56 | 65 | 400 | 1.70 |
