90g/M High Pressure PTFE Hose , PTFE Stainless Steel Braided Hose 4000psi

Certification
China Luohe Letone Hydraulics Technology Co.,Ltd. certification
China Luohe Letone Hydraulics Technology Co.,Ltd. certification
Customer Reviews
Product quality is not lower than Parker, Gates,.but the price is lower than Parker, Gates.

—— RUPALI AHIR

The quality of the oil drilling hose is very good.

—— elkin toro

I'm Online Chat Now

90g/M High Pressure PTFE Hose , PTFE Stainless Steel Braided Hose 4000psi

90g/M High Pressure PTFE Hose , PTFE Stainless Steel Braided Hose 4000psi
90g/M High Pressure PTFE Hose , PTFE Stainless Steel Braided Hose 4000psi 90g/M High Pressure PTFE Hose , PTFE Stainless Steel Braided Hose 4000psi 90g/M High Pressure PTFE Hose , PTFE Stainless Steel Braided Hose 4000psi 90g/M High Pressure PTFE Hose , PTFE Stainless Steel Braided Hose 4000psi

Large Image :  90g/M High Pressure PTFE Hose , PTFE Stainless Steel Braided Hose 4000psi

Product Details:
Place of Origin: CHINA
Brand Name: LETONE
Certification: EN12115
Model Number: LT400S
Payment & Shipping Terms:
Minimum Order Quantity: 10 Meter
Price: 10USD-100USD
Packaging Details: Plastic stretch film or wooden box
Delivery Time: Within a month
Payment Terms: T/T
Supply Ability: Annual output of 1000,000 meters

90g/M High Pressure PTFE Hose , PTFE Stainless Steel Braided Hose 4000psi

Description
Brand: LETONE Inner Layer: PTFE
Reinforcement Layer: High Strength 304 Stainless Steel Wire Braid Outer Layer: High Strength 304 Stainless Steel Wire Braid
Temperature Range: -60 ℃ ~ + 260 ℃ (-76 ℉ ~ + 500 ℉) Reference Standard: EN12115
High Light:

90g/M PTFE Stainless Steel Braided Hose

,

4000psi PTFE Stainless Steel Braided Hose

,

4000psi High Pressure PTFE Hose

LT400S PTFE hose

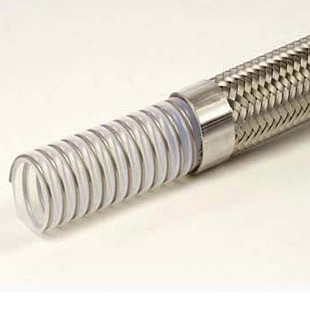

Corrugated transfer PTFE hoses, are the most broadly applied general – purpose work hoses found in hundreds of chemical transfer and food handling situations. Its present applications are as diverse as water purification systems, mercury transfer lines, and food processing equipment.
It has unusually high resistance to thermal cycling; therefore is used extensively in tire presses, laundry presses and other types of steam service where on-off operating cycles cause wide temperature fluctuations inside the hoses.
Corrugated transfer PTFE hoses are extraordinarily versatile hoses, combining excellent flexibility with large size in both length and I.D. (See Specification Table). Present users rate this as the ideal bulk transfer hoses for a wide range of caustics, chemicals and raw materials. Their applications include tank car and ship off loading, bulk handling, chemical and petrochemical transfer, pump connections and many others. PTFE hoses can also be used as a suction hoses for unloading or transfer at negative pressure.

Application: The inner wall of the product is smooth, with high temperature resistance, chemical corrosion resistance, non-adhesive substances and other characteristics, and can be customized conductive / insulation and food-grade (in accordance with FDA standards) inner layer. Suitable for conveying compressed air, ester materials (such as grease), viscous materials (such as glue), corrosive chemicals, and oil and other fluids at high temperatures

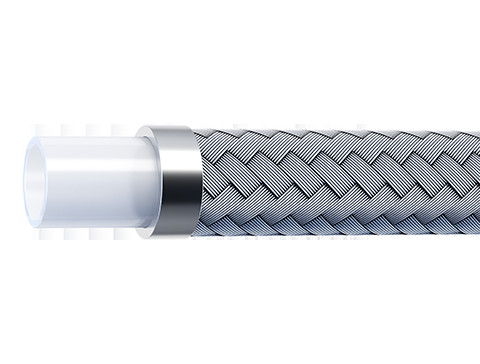

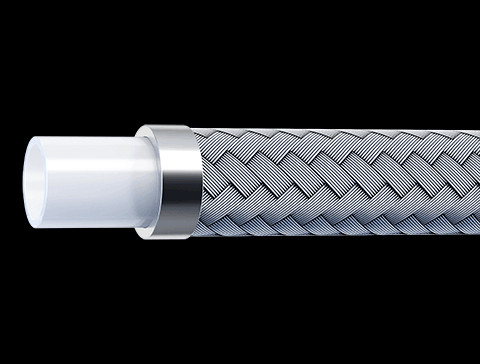

Inner layer: PTFE

Reinforcement layer: high strength 304 stainless steel wire braid

.Outer layer: high strength 304 stainless steel wire braid

Temperature range: -60 ℃ ~ + 260 ℃ (-76 ℉ ~ + 500 ℉)

Parameter

I.D. O.D. W.P. MIN.B.P. W.T.
Dash In. mm mm MPa psi mm g/m
-3 3/16 5 7.86 27.5 4000 51 90
-4 1/4 6. 8.64 24.1 3260 76 90
-5 5/16 8 11.05 20.7 3000 102 130
-6 3/8 10 12.65 18.3 2600 127 150
-8 1/2 13 15.40 16.1 2300 140 200
-10 5/8 16 18.40 13.8 2000 165 270
-12 3/4 19 22.1 11.4 1600 203 330
-16 1 25 29.75 6.9 1000 305 520
