Product Details:
|
| Brand: | LETONE | Inner Layer: | Corrugated PTFE |
|---|---|---|---|
| Reinforcement Layer: | High Strength 304 Stainless Steel Wire Braid | Outer Layer: | High Strength 304 Stainless Steel Wire Braid |
| Temperature Range: | -60 ℃ ~ + 260 ℃ (-76 ℉ ~ + 500 ℉) | Reference Standard: | EN12115 |
| High Light: | 10.3MPa Corrugated PTFE Tubing,13mm Chemical Resistance Hose,10.3MPa Chemical Resistance Hose |
||

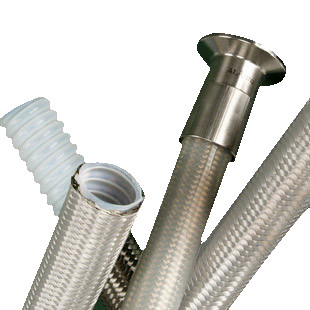

LT400C Corrugated PTFE hose
The benefits of hose pipes are:
Wear Resistance: A PTFE hose tends to provide a natural lubricity as against the normal metal which helps increase the wear resistance and the life of rollers, gears, seals and bearings.
Temperature Resistance: A PTFE hose is known for its ability to resist not only high temperature but also low temperature. This ability helps bring down the cost associated with the loss of mechanical properties.
Lightweight: A PTFE hose is known for being lightweight thus reducing the part weight by at least 30 % to a maximum of 50 % when used as a replacement to metallic parts. This feature helps save the save energy significantly if used in liner motion, transportation and material handling applications.
Shock Absorption and Impact Resistance Power: A PTFE hose has great shock absorption qualities and impact resistance.
Fire Safety: A PTFE hose has greatly improved the fire safety in applications like transportation, aircraft, semiconductor, etc. The use of PTFE tubes in the semiconductor industry has hugely reduced the need of putting up those expensive fire-suppression systems.
Insulation Properties: A PTFE hose is known to possess great insulation properties, which help improve the reliability of the product and helps reduce the heat. PTFE tubing is widely used in transportation and electrical industries to insulate the underneath product from electric and heat shocks. They also greatly help in insulating the product against high temperatures.
Application: This product has the characteristics of high temperature resistance, chemical corrosion resistance, non-adhesive substances, etc., can be customized conductive / insulation and food-grade (in accordance with FDA standards) inner layer. Suitable for conveying compressed air, ester materials (such as grease), viscous materials (such as glue), corrosive chemicals, and oil and other fluids at high temperatures
Inner layer: Corrugated PTFE
Reinforcement layer: high strength 304 stainless steel wire braid
Outer layer: high strength 304 stainless steel wire braid
Temperature range: -60 ℃ ~ + 260 ℃ (-76 ℉ ~ + 500 ℉)
Parameter
| I.D. | O.D. | W.P. | MIN.B.P. | W.T. | |||
| Dash | In. | mm | mm | MPa | psi | mm | g/m |
| -8 | 1/2 | 13 | 18.80 | 10.3 | 1500 | 25 | 280 |
| -10 | 5/8 | 16 | 22.1 | 8.3 | 1200 | 51 | 330 |
| -12 | 3/4 | 19 | 24.65 | 6.9 | 1000 | 64 | 400 |
| -16 | 1 | 25 | 32.77 | 4.6 | 670 | 89 | 550 |
| -20 | 1 1/4 | 32 | 40.72 | 3.4 | 525 | 127 | 690 |
| -24 | 1 1/2 | 38 | 48.25 | 3.0 | 450 | 152 | 890 |
| -32 | 2 | 51 | 61.5 | 2.3 | 345 | 200 | 1240 |
