Product Details:
|
| Application: | It Is Suitable For The Transportation Of Water-based | Tube: | CR/NBR Synthetic Rubber |
|---|---|---|---|
| Reinforcement: | Braided High Tensile Super Fexible Steel Wire, One Braid Impulse Reaches 300,000 Cycles, Two Braids Reaches 600,000 Cycles | OuterLayer: | Skiving-free Black Smooth Hose Cover Made Of Anti Aging Synthetic Rubber |
| Low Bending Radius：: | 30% Lower Than SAE/DIN Standards | High Pressure：: | 30% Higher Than SAE/DIN Standards |
| High Light: | Flexible SS Wire Braided Hose,High Tensile SS Wire Braided Hose,steel wire hose For Excavators |
||
LTSA699 Super Artery Steel Wire Braid Series
FEATURE
Good flexibility; specially compounded for handling,biodegradable hydraulic oil;two layers of woven tubes no less than 600 thousand times pulses; Weather resistant for more than 5 years
Applications: It is suitable for the transportation of water-based, petroleum-based hydraulic oil and biodegradable hydraulic oil in harsh working environments such as excavators and other construction machinery, construction machinery, mining machinery and agricultural machinery.
Tube: CR/NBR synthetic rubber

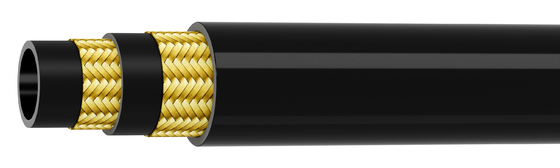

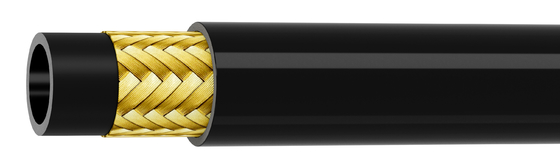

Reinforcement: braided high tensile super fexible steel wire, one braid impulse reaches 300,000 cycles, two braids reaches 600,000 cycles
OuterLayer: skiving-free black smooth hose cover made of anti aging synthetic rubber
Low bending radius: 30% lower than SAE/DIN standards
High pressure: 30% higher than SAE/DIN standards
Long service life: weather resistant for more than 5 years and warrantied for 2years (with Letone specific hoseconnectors)
Parameter
| TYPE | SIZE | I.D. | Max.W.P. | Min.B.P. | Min.B.R. |
| (in.) | (mm) | (MPa) | (MPa) | (mm) | |
| LTSA699-1BC/CS | 1/4" | 6.4 | 29.5 | 118 | 40 |
| LTSA699-1BC/CS | 5/16" | 7.9 | 25 | 100 | 55 |
| LTSA699-1BC/CS | 3/8" | 9.5 | 23 | 92 | 65 |
| LTSA699-1BC/CS | 1/2" | 12.7 | 20 | 80 | 80 |
| LTSA699-1BC/CS | 5/8" | 15.9 | 15 | 60 | 105 |
| LTSA699-1BC/CS | 3/4" | 19 | 14 | 56 | 120 |
| LTSA699-1BC/CS | 1" | 25.4 | 11 | 44 | 160 |
| LTSA699-1BC/CS | 11/4" | 31.8 | 10 | 40 | 300 |
| LTSA699-1BC/CS | 11/2" | 38.1 | 5 | 20 | 480 |
| LTSA699-1BC/CS | 2" | 50.8 | 4 | 16 | 560 |
| LTSA699-2BC/CS | 1/4" | 6.4 | 42 | 168 | 55 |
| LTSA699-2BC/CS | 5/16" | 7.9 | 38 | 152 | 60 |
| LTSA699-2BC/CS | 3/8" | 9.5 | 35 | 140 | 70 |
| LTSA699-2BC/CS | 1/2" | 12.7 | 31 | 124 | 110 |
| LTSA699-2BC/CS | 5/8" | 15.9 | 28 | 112 | 130 |
| LTSA699-2BC/CS | 3/4" | 19 | 25 | 100 | 160 |
| LTSA699-2BC/CS | 1" | 25.4 | 21 | 84 | 210 |
| LTSA699-2BC/CS | 11/4" | 31.8 | 16.5 | 66 | 250 |
| LTSA699-2BC/CS | 11/2" | 38.1 | 13.5 | 54 | 300 |
| LTSA699-2BC/CS | 2" | 50.8 | 8 | 32 | 610 |
