Product Details:
|

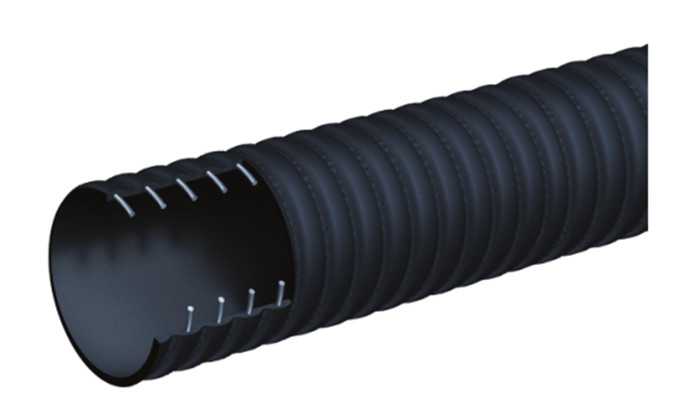

| Applications: | Oil Field Vacuum Tank Service, For Handling Crude Oil, Frack Solutions And Slurries Note | Tube: | Black Nitrile- PVC Blend, Limited Oil Resistance, For Oil Field Use |
|---|---|---|---|
| Reinforcement: | High Tensile Textile Cords; High Flexible Steel Helix Wire | Cover: | Black Corrugated SBR- Abrasion, Ozone, Limited Oil Resistance |
| Working Pressure: | Constant Pressure-10 Bar(150psi) | Temperature Range: | -30℃(-22°F)to +80℃(+176°F) |
| High Light: | Corrugated Oil Fuel Hose,PVC Blend Frac Tank Hose,PVC Blend Oil Fuel Hose |
||
Temperature Range: -30℃(-22°F)to +80℃(+176°F)
| Specifications | ||||||
| Series | I.D. (in.) | I.D. (mm) | Max.W.P.(psi) | Vacuum HG (in.) | Min.B.R. | W. (kg/m) |
| LT1207-200 | 2 | 51 | 150 | 30 | 6 | 1.28 |
| LT1207-300 | 3 | 76 | 150 | 27 | 9 | 2.40 |
| LT1207-400 | 4 | 102 | 150 | 27 | 12 | 3.56 |
Competitive Advantage:
