Product Details:
|
| Applications: | Oil Field Vacuum Tank Service, For Handling Crude Oil, Frack Solutions And Slurries (For Applications Up To 35% Aromatics. Not For Use With Refined Petroleum Products) | Tube: | Black Nitrile -PVC Blend, Limited Oil Resistance, For Oil Field Use |
|---|---|---|---|

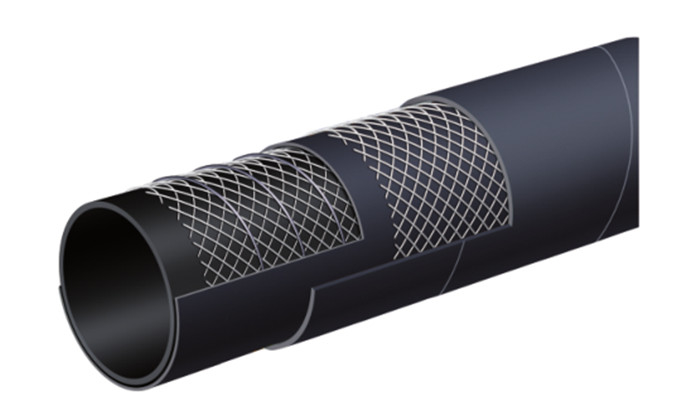

| Reinforcement: | High Tensile Textile Cords; High Flexible Steel Helix Wire | Cover: | Black SBR -abrasion, Ozone, Limited Oil Resistance |
| Working Pressure: | Constant Pressure-10 Bar(150psi) | Temperature Range: | -30℃(-22°F)to +80℃(+176°F) |
| High Light: | Frack Tank Oil Fuel Hose,2 In Oil Field Hose,LETONE Oil Field Hose |
||
| Specifications | ||||||||
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | Max.W.P.(psi) | Vacuum HG (in.) | Min.B.R. (mm) |
W. (kg/m)
|
| LT1208-200 | 2 | 51 | 2.40 | 61 | 150 | 30 | 10 | 1.38 |
| LT1208-300 | 3 | 76 | 3.46 | 88 | 150 | 27 | 15 | 2.57 |
| LT1208-400 | 4 | 102 | 4.57 | 116 | 150 | 27 | 20 | 3.57 |
| LT1208-600 | 6 | 152 | 6.61 | 168 | 150 | 24 | 30 | 6.83 |
| LT1208-800 | 8 | 203 | 8.86 | 225 | 150 | 21 | 40 | 9.82 |
