Product Details:
|
| Features: | Remove Dirt Deposited On The Surface | Application: | Water Jet Application, Especially Suitable For Jet Gun |
|---|---|---|---|
| Pressure Range: | 760~1400 Bar (10000~ 20300 Psi) | ||
| High Light: | DN20 High Pressure Water Jet Hose,4S High Pressure Water Jet Hose,DN20 water jetting hose |
||

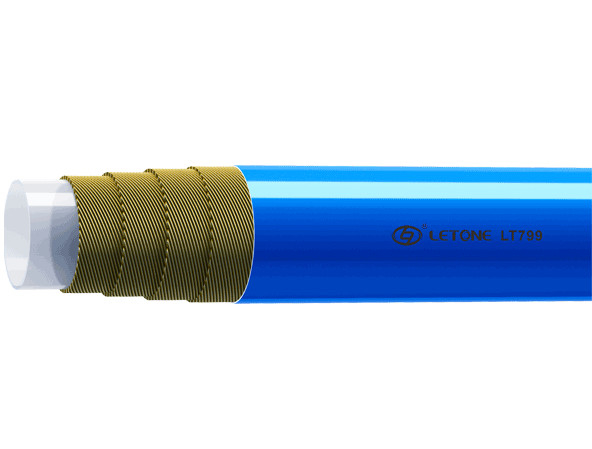

A spiral wound hose consists of two or more sets of helically wrapped high-tensile wire that exhibits exemplary strength, making the hose very strong but also very rigid. The resistance to pressure spikes is exceptionally high, especially compared to a braided hose. However, the bend radius suffers, and spiral wound hose is highly resistant to bending. This effect is especially pronounced with 4- or 6-wire hoses, which are required from many large diameter, high-pressure applications.
| Part number | Hose size | ID | OD | WP | |||||
| dash | inch | DN | mm | inch | mm | inch | bar | psi | |
| 4S-4-1040 | - | 5/32 | 4 | 4.0 | 0.157 | 10.3 | 0.406 | 1400 | 20300 |
| 4S-6-1380 | -4 | 1/4 | 6 | 6.2 | 0.244 | 13.2 | 0.520 | 1380 | 20000 |
| 4S-8-1380 | -5 | 5/16 | 8 | 7.9 | 0.311 | 15.4 | 0.606 | 1380 | 20000 |
| 4S-10-1100 | -6 | 3/8 | 10 | 9.9 | 0.390 | 18.2 | 0.717 | 1100 | 15900 |
| 4S-12-1040 | -8 | 1/2 | 12 | 12.8 | 0.504 | 22.1 | 0.870 | 1040 | 15000 |
| 4S-20-760 | -12 | 3/4 | 20 | 18.8 | 0.740 | 29.9 | 1.177 | 760 | 11000 |
