Product Details:
|
| Features: | Remove Dirt Deposited On The Surface | Application: | Water Jet Application, Especially Suitable For Jet Gun, Ship, Pipe And Container Cleaning, General Industrial Cleaning Applications |
|---|---|---|---|
| Pressure Range: | 1200 ~ 1400 Bar (17400 ~ 20300 Psi) | ||
| High Light: | DN12 Steel Wire Spiral Hydraulic Hose,DN20 Steel Wire Spiral Hydraulic Hose,DN20 industrial hose pipe |
||

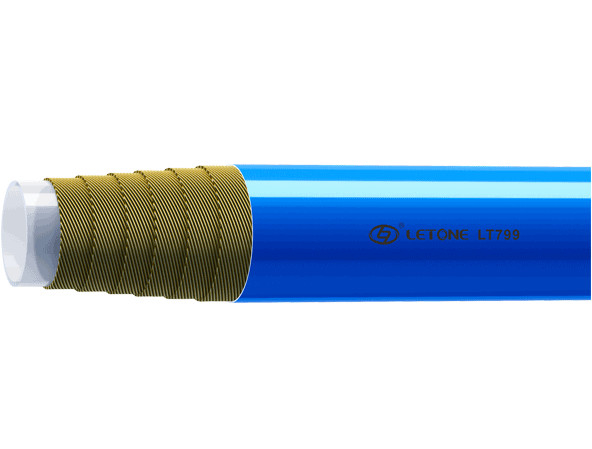

A spiral wound hose consists of two or more sets of helically wrapped high-tensile wire that exhibits exemplary strength, making the hose very strong but also very rigid. The resistance to pressure spikes is exceptionally high, especially compared to a braided hose. However, the bend radius suffers, and spiral wound hose is highly resistant to bending. This effect is especially pronounced with 4- or 6-wire hoses, which are required from many large diameter, high-pressure applications.
| Part number | Hose size | ID | OD | WP | |||||
| dash | inch | DN | mm | inch | mm | inch | bar | psi | |
| A6S-12-1400 | -8 | 1/2 | 12 | 12.8 | 0.504 | 24.3 | 0.957 | 1400 | 20300 |
| A6S-20-1200 | -12 | 3/4 | 20 | 18.8 | 0.74 | 32.6 | 1.283 | 1200 | 17400 |
