Product Details:
|
| Scope Of Application: | Ultra-high Pressure Water Jet Application, Especially Suitable For Construction And Shipbuilding Industries That Require Ultra-abrasion-resistant Environments | Pressure Range: | 2800 Bar (40600 Psi) |
|---|---|---|---|
| Features1: | Double Outer Plastic Layer | Features2: | Good Flexibility |
| Features3: | Hydraulic Demolition | Features4: | Remove Dirt Deposited On The Surface |
| High Light: | 6S Steel Wire Spiral Hydraulic Hose,40600 Psi Steel Wire Spiral Hydraulic Hose,6S spiral wire hose |
||

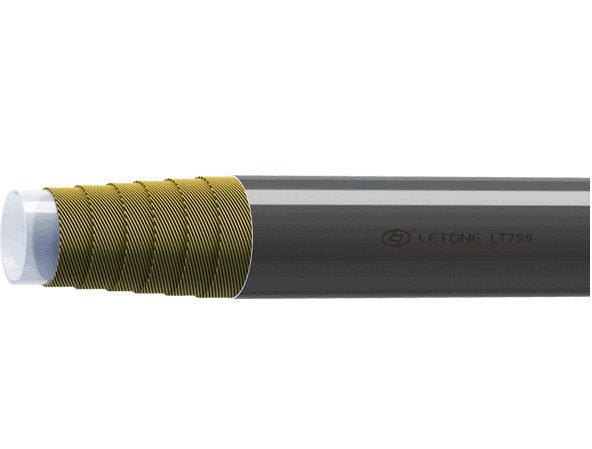

A spiral wound hose consists of two or more sets of helically wrapped high-tensile wire that exhibits exemplary strength, making the hose very strong but also very rigid. The resistance to pressure spikes is exceptionally high, especially compared to a braided hose. However, the bend radius suffers, and spiral wound hose is highly resistant to bending. This effect is especially pronounced with 4- or 6-wire hoses, which are required from many large diameter, high-pressure applications.
| Part number | Hose size | ID | OD | WP | |||||
| dash | inch | DN | mm | inch | mm | inch | bar | psi | |
| C6S-8-2500 | -5 | 5/16 | 8 | 8.1 | 0.319 | 22.5 | 0.886 | 2500 | 36200 |
