Product Details:
|
| Scope Of Application: | Ultra-high Pressure Water Jet Applications, Especially Suitable For Jet Nozzles And Hydraulic Demolition | Pressure Range: | 3010~ 4000 Bar (43600 ~ 58000 Psi) |
|---|---|---|---|
| Features1: | Water Jet Cutting | Features2: | Good Flexibility |
| Features3: | Remove Dirt Deposited On The Surface | ||
| High Light: | DN5 Spiral Wire Hose,4000 Bar Spiral Wire Hose,3010 Bar spiral hydraulic hose |
||

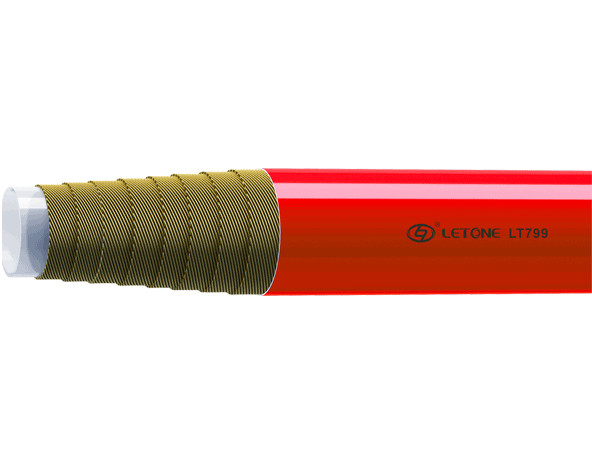

A spiral wound hose consists of two or more sets of helically wrapped high-tensile wire that exhibits exemplary strength, making the hose very strong but also very rigid. The resistance to pressure spikes is exceptionally high, especially compared to a braided hose. However, the bend radius suffers, and spiral wound hose is highly resistant to bending. This effect is especially pronounced with 4- or 6-wire hoses, which are required from many large diameter, high-pressure applications.
| Part number | Hose size | ID | OD | WP | |||||
| dash | inch | DN | mm | inch | mm | inch | bar | psi | |
| B8S-5-4000 | -3 | 3/16 | 5 | 4.7 | 0.181 | 16.0 | 0.630 | 4000 | 58000 |
| B8S-8-3800 | -5 | 5/16 | 8 | 7.6 | 0.299 | 22.0 | 0.866 | 3800 | 55100 |
| B8S-12-3010 | -8 | 1/2 | 12 | 12.8 | 0.504 | 28.7 | 1.130 | 3010 | 43600 |
