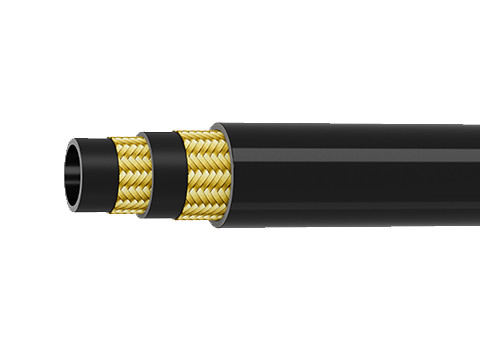

Product Details:
|
| Application: | It Is Suitable For The Transportation Of Water-based, Petroleum-based Hydraulic Oil And Biodegradable Hydraulic Oil In Harsh Working Environments Such As Excavators And Other Construction Machinery, Construction Machinery, Mining Machinery And Agricultural | Tube: | CR/NBR Synthetic Rubber |
|---|---|---|---|
| Reinforcement: | Braided High Tensile Super Fexible Steel Wire, One Braid Impulse Reaches 300,000 Cycles, Two Braids Reaches 600,000 Cycles | OuterLayer: | Black Glossy Anti-aging And Non-peeling Synthetic Rubber Layer |
| High Pressure: | 25% Higher Than SAE/DIN Standards | Low Bending RadiusRange: | 30% Lower Than SAE/DIN Standards |
| Long Service Life: | Weather Resistant For More Than 5 Years And Warrantied For 2years (with Letone Specific Hoseconnectors) | Temperature Range: | -40℃~+100℃（-40℉ ~ +212℉） |
| High Light: | Artery Wire Braided Hydraulic Hose,Wire Braided Hydraulic Hose 1/4",Wire Braided Hydraulic Hose 5/16" |
||
A spiral wound hose consists of two or more sets of helically wrapped high-tensile wire that exhibits exemplary strength, making the hose very strong but also very rigid. The resistance to pressure spikes is exceptionally high, especially compared to a braided hose. However, the bend radius suffers, and spiral wound hose is highly resistant to bending. This effect is especially pronounced with 4- or 6-wire hoses, which are required from many large diameter, high-pressure applications.
| TYPE | SIZE | I.D. | Max.W.P. | Min.B.P. | Min.B.R. |
|
(in.)
|
(mm)
|
(MPa) | (MPa) | (mm) | |
| LTSA699-1BC/CS | 1/4" | 6.4 | 29.5 | 118 | 40 |
| LTSA699-1BC/CS | 5/16" | 7.9 | 25 | 100 | 55 |
| LTSA699-1BC/CS | 3/8" | 9.5 | 23 | 92 | 65 |
| LTSA699-1BC/CS | 1/2" | 12.7 | 20 | 80 | 80 |
| LTSA699-1BC/CS | 5/8" | 15.9 | 15 | 60 | 105 |
| LTSA699-1BC/CS | 3/4" | 19 | 14 | 56 | 120 |
| LTSA699-1BC/CS | 1" | 25.4 | 11 | 44 | 160 |
| LTSA699-1BC/CS | 11/4" | 31.8 | 10 | 40 | 300 |
| LTSA699-1BC/CS | 11/2" | 38.1 | 5 | 20 | 480 |
| LTSA699-1BC/CS | 2" | 50.8 | 4 | 16 | 560 |
| LTSA699-2BC/CS | 1/4" | 6.4 | 42 | 168 | 55 |
| LTSA699-2BC/CS | 5/16" | 7.9 | 38 | 152 | 60 |
| LTSA699-2BC/CS | 3/8" | 9.5 | 35 | 140 | 70 |
| LTSA699-2BC/CS | 1/2" | 12.7 | 31 | 124 | 110 |
| LTSA699-2BC/CS | 5/8" | 15.9 | 28 | 112 | 130 |
| LTSA699-2BC/CS | 3/4" | 19 | 25 | 100 | 160 |
| LTSA699-2BC/CS | 1" | 25.4 | 21 | 84 | 210 |
| LTSA699-2BC/CS | 11/4" | 31.8 | 16.5 | 66 | 250 |
| LTSA699-2BC/CS | 11/2" | 38.1 | 13.5 | 54 | 300 |
| LTSA699-2BC/CS | 2" | 50.8 | 8 | 32 | 610 |
