MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine

MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine
MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine
MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine

Large Image :  MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine

Product Details:
Place of Origin: CHINA
Brand Name: LETONE
Certification: Hose execution SAE100R12 standard, GB/T10544-2013 standard
Model Number: LT585
Payment & Shipping Terms:
Minimum Order Quantity: 100 Meter
Price: 1USD-20USD
Packaging Details: Plastic stretch film or carton
Delivery Time: Within a month
Payment Terms: T/T
Supply Ability: Annual output of 5000,000 meters

MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine

Description
Application: Suitable For Conveying Mineral Oil Tube: Made Of Special Rubber With Good Oil And Weather Resistance
Reinforcement: Reinforced With Copper Coated Steel Wire And Black Fabric Appearance Cover: Anti-aging Synthetic Rubber
Temperature Range:: -40℃~+100℃(-40°F~+212°F) Standard:: Hose Execution MT/T98-2006 Standard
Uses: Suitable For Coal Mine Hydraulic Supports, Integrated Coal Mining Unit Hydraulic System To Transport Mineral Oil, Water-based Hydraulic Oil And Water, And Can Be Used At -40℃∽+100℃ (-40℉∽+212℉). Hose Structure: It Is Made Of Special Rubber With Good Resistance To Oil And Weather, Reinforced By Copper-plated Steel Wire, And The Appearance Is Black Cloth Pattern. The Hose Implements The MT/T98-2006 Standard.
High Light:

MT T98 2006 Steel Wire Spiral Hydraulic Hose

,

Steel Wire Spiral Hydraulic Hose For Mining

,

MT T98 2006 Steel Wire Spiral Rubber Hose

MT T98 2006 Steel Wire Spiral Hydraulic Hose For Mining Mine Steel Wire Spiral Rubber Hose

A wire braided hose consists of crossing and woven high tensile steel wires overlapping one another to reinforce the tube below. Wire braiding machines perform a complex task of winding the wire intricately around the tube, like dancers around a horizontal maypole. The overlapping nature of braided wire not only increases burst resistance to the tube but also allows flexibility between the braids. The crisscrossing braided wire has more tensile play than a spiral hose, resulting in tighter bend radius and overall flexibility.

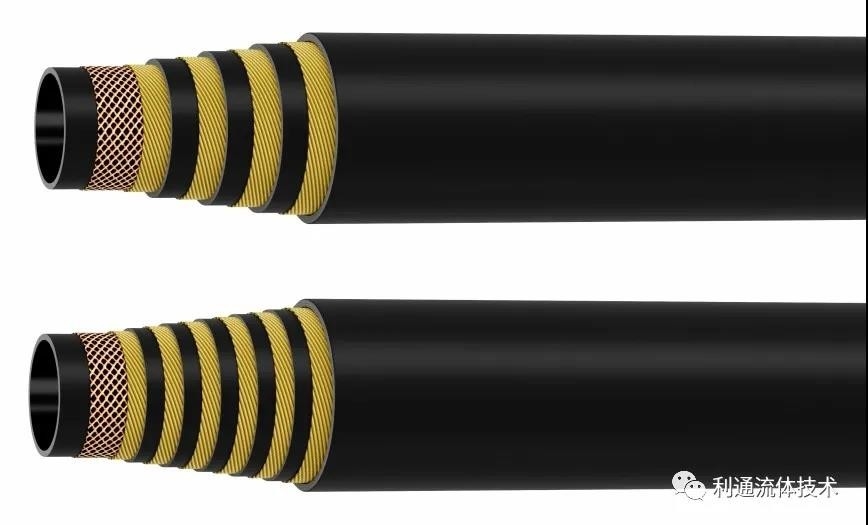

A spiral wound hose consists of two or more sets of helically wrapped high-tensile wire that exhibits exemplary strength, making the hose very strong but also very rigid. The resistance to pressure spikes is exceptionally high, especially compared to a braided hose. However, the bend radius suffers, and spiral wound hose is highly resistant to bending. This effect is especially pronounced with 4- or 6-wire hoses, which are required from many large diameter, high-pressure applications.

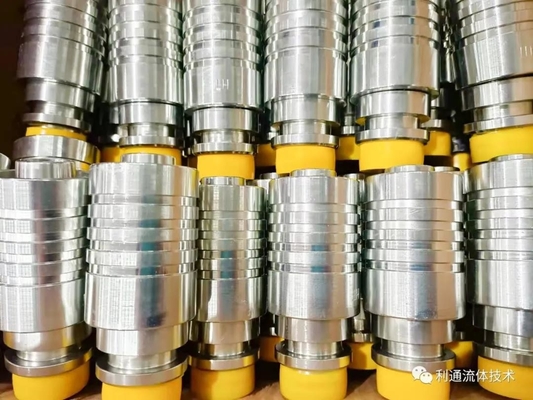

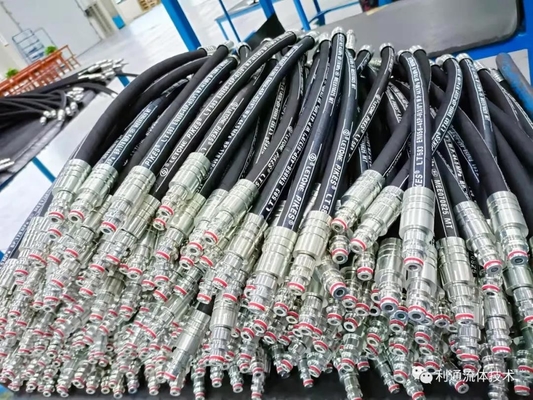

Focusing on the intelligent transformation and upgrading of coal mine hydraulic support manufacturing, we have carried out technical research, took multiple measures to solve the problem of "stuck neck", produced and developed differentiated mining braided/wound hoses, supporting the use of Litong Technology's mining U-shaped pin quick couplings , It can meet the requirements of hydraulic systems such as comprehensive coal mining units to transport coal oil, water-based hydraulic oil or water under extreme high pressure and harsh conditions without pressure, and improve work and production efficiency.

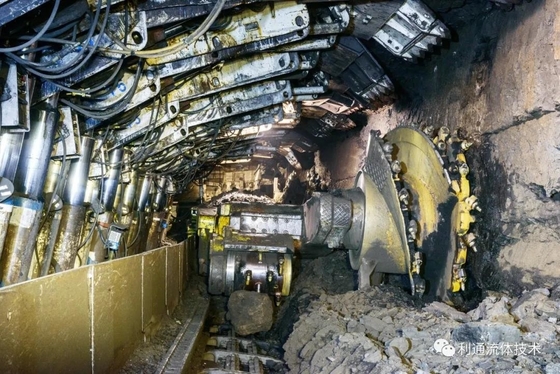

Application: Suitable for conveying mineral oil, water-based hydraulic oil or water by hydraulic system such as coal mine hydraulic support and comprehensive coal mining unit

Tube: made of special rubber with good oil and weather resistance

Reinforcement: reinforced with copper coated steel wire and black fabric appearance

Cover: anti-aging synthetic rubber

Temperature Range: -40℃~+100℃(-40°F~+212°F)

Standard: Hose execution MT/T98-2006 standard

Characters: made of special rubber with good oil and weather resistance, reinforced with copper coated steel wire and black fabric appearance

Uses: Suitable for coal mine hydraulic supports, integrated coal mining unit hydraulic system to transport mineral oil, water-based hydraulic oil and water, and can be used at -40℃∽+100℃ (-40℉∽+212℉).

Hose structure: It is made of special rubber with good resistance to oil and weather, reinforced by copper-plated steel wire, and the appearance is black cloth pattern. The hose implements the MT/T98-2006 standard.

Parameter

I.D. (mm) I.D. (in.) I.D. (mm) O.D.(mm) Max.W.P. Min. B.P. Min. B.R.
Min Max Max (MPa) (MPa) (mm)
10 3/8-4 9.7 10.5 24.0 70 210 180
13 1/2-4 12.7 13.5 27.5 57 172 210
16 5/8-4 15.7 16.6 31.0 53 160 260
19 3/4-4 18.7 19.8 35.5 46 140 280
22 7/8-4 21.7 22.8 39.5 41 124 320
25 1-4 24.7 25.8 42.5 35 112 360
32 1 1/4-4 31.6 32.6 50.5 32 84 460
38 1 1/2-4 37.7 38.8 57.5 25 75 560
45 1 3/4-4 44.7 45.8 64.5 21 64 640
51 2-4 50.5 52.0 70.5 21 64 720
10 3/8-6 9.7 10.5 26.0 80 240 180
13 1/2-6 12.7 13.5 30.5 72 216 210
16 5/8-6 15.7 16.6 34.5 70 204 260
19 3/4-6 18.7 19.8 38.5 60 180 280
22 7/8-6 21.7 22.8 42.5 53 160 320
25 1-6 24.7 25.8 45.5 50 152 360
32 1 1/4-6 31.6 32.6 53.5 41 124 460
38 1 1/2-6 37.7 38.8 60.5 36 108 560
45 1 3/4-6 44.7 45.8 67.5 32 96 640
51 2-6 50.5 52.0 74.0 32 96 720
