Product Details:
|
| Applications: | Suitable For Hydraulic Support, Comprehensive Set Of Hydraulic System Shearer Transport Mineral Oil, Water-based Hydraulic Oil Or Water | Tube: | Black Oil-resistant Synthetic Rubber |
|---|---|---|---|

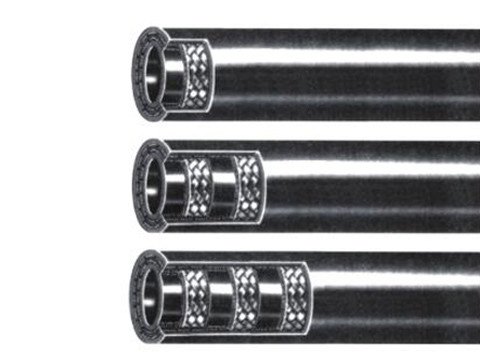

| Reinforbraidcement: | One Or More Layers Of Super Flexible High-strength Steel Wire | Cover: | Black Oil-resistant, Weather-resistant, Wear-resistant Synthetic Rubber |
| Temperature Range: | -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) | Brand: | LETONE |
| High Light: | MT98 Super Artery Hose,Mine Super Artery Hose,MT98 Wire Braided Rubber Hose Pipe |
||
| SIZE (Dash) | SIZE (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min.B.P. | Min.B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 6—1 | 1/4—1 | 5.8 | 6.5 | 15.4 | 32.0 | 80 | 100 |
| 8—1 | 5/16—1 | 7.8 | 8.5 | 17.4 | 28.0 | 70 | 115 |
| 10—1 | 3/8—1 | 9.8 | 10.5 | 19.3 | 25.6 | 64 | 130 |
| 13—1 | 1/2—1 | 12.8 | 13.5 | 23.1 | 22.4 | 56 | 180 |
| 16—1 | 5/8—1 | 15.8 | 16.6 | 26.3 | 16.8 | 42 | 205 |
| 19—1 | 3/4—1 | 18.8 | 19.8 | 29.2 | 14.4 | 36 | 240 |
| 22—1 | 7/8—1 | 21.8 | 22.8 | 32.2 | 12.8 | 32 | 280 |
| 25—1 | 1—1 | 24.8 | 25.8 | 35.8 | 11.2 | 28 | 300 |
| 32—1 | 1 1/4—1 | 31.6 | 33.6 | 44.2 | 9.0 | 22.5 | 420 |
| 38—1 | 1 1/2—1 | 37.7 | 39.8 | 51.2 | 7.0 | 17.5 | 500 |
| 45—1 | 1 3/4—1 | 44.6 | 45.6 | 57.2 | 5.0 | 12.5 | 550 |
| 51—1 | 2—1 | 50.7 | 52.0 | 64.7 | 3.0 | 7.5 | 630 |
| 6—2 | 1/4—2 | 5.8 | 6.5 | 17.2 | 56.0 | 140 | 100 |
| 8—2 | 5/16—2 | 7.8 | 8.5 | 19.2 | 48.0 | 120 | 115 |
| 10—2 | 3/8—2 | 9.8 | 10.5 | 21.1 | 40.0 | 100 | 130 |
| 13—2 | 1/2—2 | 12.8 | 13.5 | 24.9 | 36.0 | 90 | 180 |
| 16—2 | 5/8—2 | 15.8 | 16.6 | 28.1 | 32.0 | 80 | 205 |
| 19—2 | 3/4—2 | 18.8 | 19.8 | 31 | 25.0 | 62 | 240 |
| 22—2 | 7/8—2 | 21.8 | 22.8 | 34 | 22.0 | 55 | 280 |
| 25—2 | 1—2 | 24.8 | 25.8 | 37.6 | 21.0 | 52 | 300 |
| 32—2 | 1 1/4—2 | 31.6 | 33.6 | 46.2 | 17.0 | 42.5 | 420 |
| 38—2 | 1 1/2—2 | 37.7 | 39.8 | 52.2 | 12.0 | 30 | 500 |
| 45—2 | 1 3/4—2 | 44.6 | 45.6 | 59.2 | 9.0 | 22.5 | 55 |
| 51—2 | 2—2 | 50.7 | 52.0 | 65.2 | 8.0 | 20 | 630 |
| 8—3 | 5/16—3 | 7.8 | 8.5 | 20.8 | 50.0 | 125 | 115 |
| 10—3 | 3/8—3 | 9.8 | 10.5 | 22.7 | 45.0 | 112.5 | 130 |
| 13—3 | 1/2—3 | 12.8 | 13.5 | 26.7 | 40.0 | 100 | 180 |
| 16—3 | 5/8—3 | 15.8 | 16.6 | 29.9 | 35.0 | 87.5 | 205 |
| 19—3 | 3/4—3 | 18.8 | 19.8 | 32.8 | 28.0 | 70.5 | 240 |
| 22—3 | 7/8—3 | 21.8 | 22.8 | 35.8 | 25.0 | 62.5 | 280 |
| 25—3 | 1—3 | 24.8 | 25.8 | 38.8 | 24.0 | 60.5 | 300 |
| 32—3 | 1 1/4—3 | 31.6 | 33.6 | 48.8 | 19.0 | 47.5 | 420 |
| 38—3 | 1 1/2—3 | 37.7 | 39.8 | 54.2 | 15.0 | 37.5 | 500 |
