Product Details:
|
| Applications: | Suitable For Conveying Mineral Oil, Water-based Hydraulic Oil Or Water And Other Media In Hydraulic Systems Such As Coal Mine Hydraulic Supports And Integrated Coal Mining Units | Tube: | Black Oil-resistant Synthetic Rubber |
|---|---|---|---|

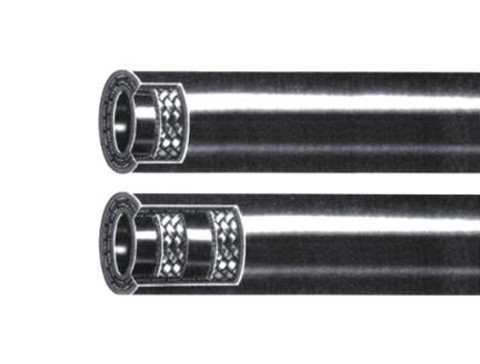

| Reinforbraidcement: | One Or Two Layers Of Super Flexible High-strength Steel Wire | Cover: | Black Oil-resistant, Weather-resistant, Wear-resistant Synthetic Rubber |
| Temperature Range: | -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F) | Brand: | LETONE |
| High Light: | 4-2" Steel Wire Braided Rubber Hose,Mine Steel Wire Braided Rubber Hose,4-2" wire braided rubber hose pipe |
||
| SIZE (Dash) | SIZE (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min.B.P. | Min.B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 64 | 2-1/2-1 | 63.5 | 65.3 | 80.0 | 3.5 | 10.5 | 800 |
| 76 | 3-1 | 75.5 | 77.5 | 92.0 | 3 | 9 | 920 |
| 86 | 3-3/8-1 | 84.5 | 86.7 | 101.0 | 2.5 | 7.5 | 1000 |
| 89 | 3-1/2-1 | 88.4 | 90.0 | 106.0 | 2.5 | 7.5 | 1100 |
| 101 | 4-1 | 101.0 | 104.5 | 121.0 | 2 | 6 | 1300 |
| 64 | 2-1/2-2 | 63.5 | 65.3 | 80.0 | 7 | 21 | 800 |
| 76 | 3-2 | 75.5 | 77.5 | 94.0 | 6 | 18 | 920 |
| 86 | 3-3/8-2 | 84.5 | 86.7 | 103.0 | 5 | 15 | 1000 |
| 89 | 3-1/2-2 | 88.4 | 90.0 | 108.0 | 5 | 15 | 1100 |
| 102 | 4-2 | 101 | 104.5 | 123 | 4 | 12 | 1300 |
