Product Details:
|
| Applications: | Suitable For Conveying Water-based And Petroleum-based Hydraulic Oil And Biodegradable Hydraulic Oil, To Meet The General Needs Of Industrial Pipes | Tube: | Black Oil-resistant Synthetic Rubber |
|---|---|---|---|

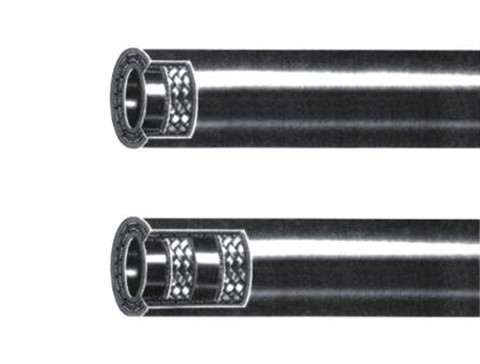

| Reinforbraidcement: | One Or Two Layers Of Super Flexible High-strength Steel Wire | Cover: | Black Oil-resistant, Weather-resistant, Wear-resistant Synthetic Rubber |
| Temperature Range: | -40 ° C ~ + 121 ° C (-40 ° F ~ + 250 ° F) | Brand: | LETONE |
| High Light: | SAE 100R16 Reinforced Rubber Hoses,2 Wire Braided Reinforced Rubber Hoses,SAE 100R16 wire braided hoses |
||
| SIZE (Dash) | SIZE (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min.B.P. | |
| Min | Max | Max | (MPa) | (MPa) | ||
| 6 | 1/4 | 6.2 | 7.0 | 14.5 | 35 | 140 |
| 8 | 5/16 | 7.7 | 8.5 | 15.7 | 29.7 | 119 |
| 10 | 3/8 | 9.3 | 10.1 | 18.8 | 28 | 112 |
| 13 | 1/2 | 12.3 | 13.5 | 22.0 | 24.5 | 98 |
| 16 | 5/8 | 15.5 | 16.7 | 25.4 | 21 | 84 |
| 19 | 3/4 | 18.6 | 19.8 | 29.0 | 21 | 84 |
| 25 | 1" | 25.0 | 26.4 | 36.6 | 14 | 56 |
| 32 | 1"1/4 | 31.4 | 33.0 | 44.3 | 11.3 | 45.5 |
