Product Details:
|
| Applications: | Apply To Fast Hydrogen Refueling Of Cell Electric Cars | Inner Layer: | Synthetic Rubber |
|---|---|---|---|

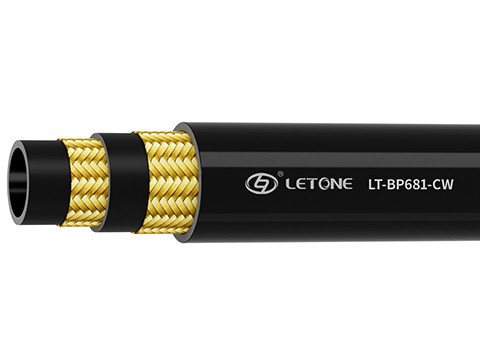

| Reinforbraidcement: | One Or Two Layers Of Steel Wire Braiding | Outer Layer: | Wear Resistant Synthetic Rubber Or Super Wear Resistant UPE |
| Temperature Range: | - 40 ℃ ~ + 100 ℃ (- 40 ℉ ~ + 212 ℉) | Brand: | LETONE |
| High Light: | 40.0Mpa High Pressure Car Wash Hose,DIN EN853 SN High Pressure Car Wash Hose,SAEJ517 100RAT Car Wash Hose |
||
| SIZE (in.) | I.D(mm) | W.D(mm) | O.D(mm) | Outer Layer Thickness(mm) | Max.W.P | P.P | Min.B.P | Min.B.R | W.T | |||
| in | Min | Max | Min | Max | Max | Min | Max | Mpa | Mpa | Mpa | mm | kg/m |
| 1/4-1 | 6.2 | 7.0 | 10.6 | 11.6 | 14.1 | 0.8 | 1.5 | 22.5 | 45.0 | 90.0 | 100 | 0.23 |
| 5/16-1 | 7.7 | 8.5 | 12.1 | 13.3 | 15.7 | 0.8 | 1.5 | 21.5 | 43.0 | 85.0 | 115 | 0.28 |
| 3/8-1 | 9.3 | 10.1 | 14.5 | 15.7 | 18.1 | 0.8 | 1.5 | 18.0 | 36.0 | 72.0 | 130 | 0.33 |
| 1/4-2 | 6.1 | 7.0 | 12.1 | 13.3 | 15.7 | 0.8 | 1.5 | 40.0 | 80.0 | 160.0 | 100 | 0.35 |
| 5/16-2 | 7.7 | 8.5 | 13.7 | 14.9 | 17.3 | 0.8 | 1.5 | 35.0 | 70.0 | 140.0 | 115 | 0.41 |
| 3/8-2 | 9.3 | 10.1 | 16.1 | 17.3 | 19.7 | 0.8 | 1.5 | 33.0 | 66.0 | 132.0 | 130 | 0.50 |
