SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe

Certification
China Luohe Letone Hydraulics Technology Co.,Ltd. certification
China Luohe Letone Hydraulics Technology Co.,Ltd. certification
Customer Reviews
Product quality is not lower than Parker, Gates,.but the price is lower than Parker, Gates.

—— RUPALI AHIR

The quality of the oil drilling hose is very good.

—— elkin toro

I'm Online Chat Now

SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe

SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe
SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe
SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe

Large Image :  SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe

Product Details:
Place of Origin: CHINA
Brand Name: LETONE
Certification: Hose execution SAE100R12 standard, GB/T10544-2013 standard
Model Number: LT581
Payment & Shipping Terms:
Minimum Order Quantity: 100 Meter
Price: 1USD-20USD
Packaging Details: Plastic stretch film or carton
Delivery Time: Within a month
Payment Terms: T/T
Supply Ability: Annual output of 10,000,000 meters

SAE 100R12 4 Wire Spiral Super Artery Hose Hydraulic Rubber Hose Pipe

Description
Applications: Suitable For Using Oil Base Hydraulic Oil, Is Suitable For The Harsh Conditions Of High Temperature And Medium Pressure Hose Tube: The Hose Consists Of A Heat-resistant Synthetic Rubber Inner Layer
Reinforbraidcement: Four-layer Steel Wire Winding Layer Cover: Oil-resistant And Weather Resistant Synthetic Rubber The Outer Rubber Layer Is Composed
Temperature Range: 40 ℃ ~ + 121 ℃ (- 40 ° F ~ + 250 ° F) Brand: LETONE
Standard: Hose Execution SAE100R12 Standard, GB/T10544-2013 Standard
High Light:

4 Wire Spiral Super Artery Hose

,

112Mpa Super Artery Hose

,

SAE 100R12 Hydraulic Rubber Hose Pipe

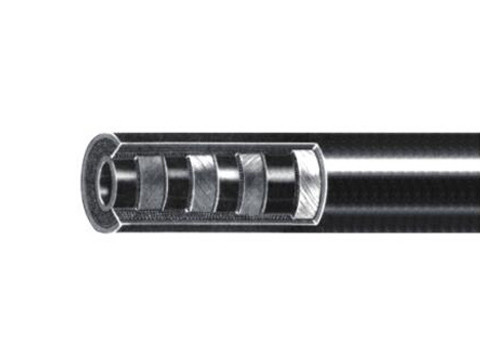

LT581 SAE 100R12 4 Wire Spiral High Pressure Hydraulic Rubber Hose
Application:Suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
Tube :The hose consists of a heat-resistant synthetic rubber inner layer
Reinforcement: Four-layer steel wire winding layer
Cover:Oil-resistant and weather resistant synthetic rubber The outer rubber layer is composed
Temperature range :40 ℃ ~ + 121 ℃ (- 40 ° F ~ + 250 ° F)
Standard:Hose execution SAE100R12 standard, GB/T10544-2013 standard
Parameter
I.D. (mm) I.D. (in.) I.D. (mm) O.D.(mm) Max.W.P. Min. B.P. Min. B.R.
Min Max Max (MPa) (MPa) (mm)
10 3/8 9.3 10.1 21.0 28 112 125
13 1/2 12.3 13.5 24.6 28 112 180
16 5/8 15.5 16.7 28.2 28 112 200
19 3/4 18.6 19.8 31.5 28 112 240
25 1 25.0 26.4 39.2 28 112 300
32 1 1/4 31.4 33.0 48.6 21 84 420
38 1 1/2 37.7 39.3 55.0 17.5 70 500
51 2 50.8 52.0 68.3 17.5 70 640



 2222
