Product Details:
|
| Applications: | Suitable For Using Oil Base Hydraulic Oil, Is Suitable For The Harsh Conditions Of High Temperature And Medium Pressure Hose | Tube: | Wear-resistant Rubber |
|---|---|---|---|
| Reinforbraidcement: | Adopts 4-layer High-strength Steel Wire Wrapped Layer As The Framework Layer | Cover: | Wear-resistant Rubberouter Rubber Layers |
| Temperature Range: | 40 ℃ ~ + 121 ℃ (- 40 ° F ~ + 250 ° F) | Brand: | LETONE |
| Standard: | Hose Execution SAE100R13 Standard, GB/T10544-2013 Standard | ||

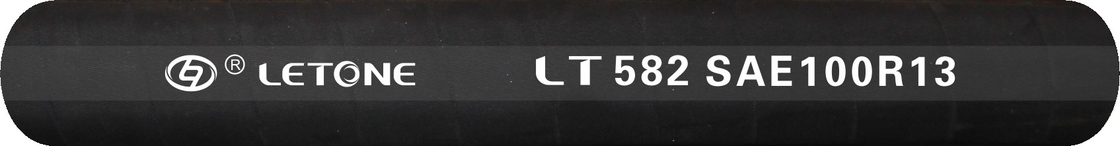

| High Light: | SAE 100R13 Spiral Wire Hose,High Pressure Spiral Wire Hose,100R13 High Pressure Hydraulic Rubber Hose |
||
| I.D. (mm) | I.D. (in.) | I.D. (mm) | O.D.(mm) | Max.W.P. | Min. B.P. | Min. B.R. | |
| Min | Max | Max | (MPa) | (MPa) | (mm) | ||
| 19 | 3/4 | 18.6 | 19.8 | 33.2 | 35 | 140 | 240 |
| 25 | 1 | 25.0 | 26.4 | 39.8 | 35 | 140 | 300 |
| 32 | 1 1/4 | 31.4 | 33.0 | 51.3 | 35 | 140 | 420 |
| 38 | 1 1/2 | 37.7 | 39.3 | 58.8 | 35 | 140 | 500 |
| 51 | 2 | 50.4 | 52.0 | 72.7 | 35 | 140 | 640 |
