EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire

Certification
China Luohe Letone Hydraulics Technology Co.,Ltd. certification
China Luohe Letone Hydraulics Technology Co.,Ltd. certification
Customer Reviews
Product quality is not lower than Parker, Gates,.but the price is lower than Parker, Gates.

—— RUPALI AHIR

The quality of the oil drilling hose is very good.

—— elkin toro

I'm Online Chat Now

EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire

EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire
EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire
EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire

Large Image :  EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire

Product Details:
Place of Origin: CHINA
Brand Name: LETONE
Certification: Hose execution SAE100R13 standard, GB/T10544-2013 standard
Model Number: LT583
Payment & Shipping Terms:
Minimum Order Quantity: 100 Meter
Price: 1USD-20USD
Packaging Details: Plastic stretch film or carton
Delivery Time: Within a month
Payment Terms: T/T
Supply Ability: Annual output of 10,000,000 meters

EN856-4SP 4 Wire Spiral Super Artery Hose High Tensile Steel Wire

Description
Applications: Suitable For Conveying Mineral Oil, Water-based Hydraulic Oil Or Water By Hydraulic System Such As Coal Mine Hydraulic Support And Comprehensive Coal Mining Unit Tube: Black, Oil Resistant Sythentic Rubber
Reinforbraidcement: 4 Layers Of Spiraled High Tensile Steel Wire Cover: Weather Resistant Sythentic Rubber
Temperature Range: -40℃~+100℃ (-40°F~+212°F) Brand: LETONE
Standard: EN856-4SP;GB/T10544-2013
High Light:

EN856-4SP Super Artery Hose

,

4 Wire Super Artery Hose

,

EN856-4SP spiral wire hose

LT583 EN856-4SP 4 Wire Spiral Hydraulic Rubber Hose High Tensile Steel Wire
Application:Suitable for conveying mineral oil, water-based hydraulic oil or water by hydraulic system such as coal mine hydraulic support and comprehensive coal mining unit

Tube:black, oil resistant sythentic rubber

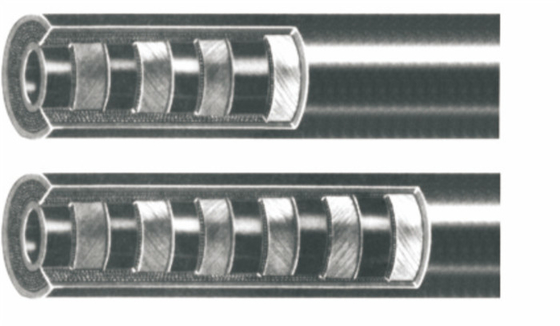

Reinforcement:4 layers of spiraled high tensile steel wire
Cover:weather resistant sythentic rubber
Temperature Range:-40℃~+100℃ (-40°F~+212°F)
Standard: EN856-4SP;GB/T10544-2013
Parameter
I.D. (mm) I.D. (in.) I.D. (mm) O.D.(mm) Max.W.P. Min. B.P. Min. B.R.
Min Max Max (MPa) (MPa) (mm)
10 3/8-4 9.7 10.5 24.0 70 210 180
13 1/2-4 12.7 13.5 27.5 57 172 210
16 5/8-4 15.7 16.6 31.0 53 160 260
19 3/4-4 18.7 19.8 35.5 46 140 280
22 7/8-4 21.7 22.8 39.5 41 124 320
25 1-4 24.7 25.8 42.5 35 112 360
32 1 1/4-4 31.6 32.6 50.5 32 84 460
38 1 1/2-4 37.7 38.8 57.5 25 75 560
45 1 3/4-4 44.7 45.8 64.5 21 64 640
51 2-4 50.5 52.0 70.5 21 64 720
10 3/8-6 9.7 10.5 26.0 80 240 180
13 1/2-6 12.7 13.5 30.5 72 216 210
16 5/8-6 15.7 16.6 34.5 70 204 260
19 3/4-6 18.7 19.8 38.5 60 180 280
22 7/8-6 21.7 22.8 42.5 53 160 320
25 1-6 24.7 25.8 45.5 50 152 360
32 1 1/4-6 31.6 32.6 53.5 41 124 460
38 1 1/2-6 37.7 38.8 60.5 36 108 560
45 1 3/4-6 44.7 45.8 67.5 32 96 640
51 2-6 50.5 52.0 74.0 32 96 720



 2222
