Product Details:
|
| Applications: | Suitable For Using Oil Base Hydraulic Oil, Is Suitable For The Harsh Conditions Of High Temperature And Medium Pressure Hose Applications | Tube: | Oil-resistant Black Synthetic Rubber |
|---|---|---|---|

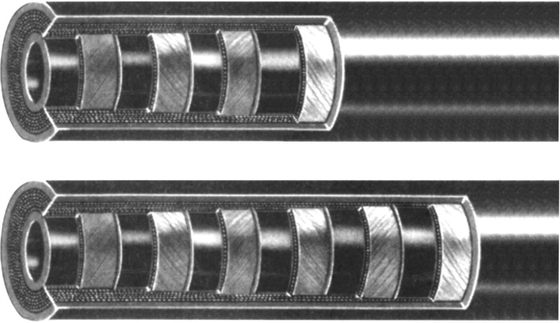

| Reinforbraidcement: | Six - Layer High Strength Steel Wire , Inner Diameter 25 | Cover: | Black Synthetic Rubber, Oil Resistance, Wear Resistance, Weather Resistance |
| Temperature Range: | -40℃～+121℃ ( -40℉～+250℉) | Standard: | LETONE |
| High Light: | Wire Spiral Hydraulic Rubber Hose,High Pressure Hydraulic Rubber Hose,High Pressure spiral hydraulic hose |
||
| Series | I.D. (in.) | I.D. (mm) | O.D. (in.) | O.D. (mm) | MaxRec.W.P. (PSI) | MaxRec.B.P. (PSI) | Min.B.R. mm | Weight Kg/m |
| LT593 | 16 | -10 | 5/8" | 28.4 | 7250 | 29000 | 200 | 1.35 |
| LT593 | 19 | -12 | 3/4" | 32 | 7250 | 29000 | 215 | 1.55 |
| LT593 | 25 | -16 | 1" | 39 | 7250 | 29000 | 270 | 2.1 |
| LT593 | 31 | -20 | 1-1/4" | 51 | 7250 | 29000 | 380 | 3.9 |
