Product Details:
|
| Tube: | Black NBR - Exhaust Gas, Fuel And Fire Resistant | Applications: | Fuel, Oil And Hydraulic Fluids Suction And Discharge. Suitable For Exhaust Gas From Water Cooled Stationary Or Marine Diesel Engines,Offers Maximum Flexibility |
|---|---|---|---|
| Cover: | Black NBR/PVC Blend-abrasion, Ozone,hydrocarbon And Fire Resistant | Working Pressure: | Constant Pressure-5 Bar(75 PSI) |

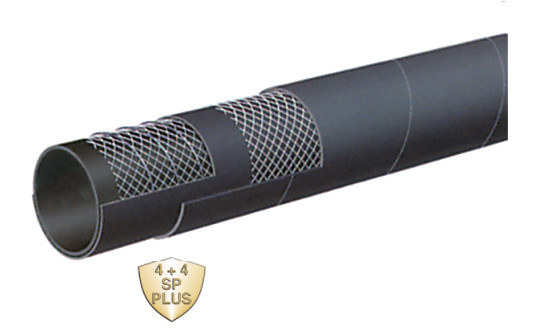

| Temperature Range: | -20℃(-40°F)to +100℃(+212°F) | Reinforcement: | High Tensile Textile Cords And 4 Highly Flexible Steel Helix Wires |
| High Light: | SAE J1527 B2 Oil Fuel Hose,USCG Marine Wet Exhaust Hose,SAE J1527 B2 Marine Wet Exhaust Hose |
||
| Specifications | ||||||||
| Series | I.D.(in.) | I.D.(mm) | O.D. (in.) | O.D. (mm) | Max.W.P.(psi) | Vacuum HG (in.) | Min.B.R.(mm) | W. (kg/m) |
| LT1203-062 | 5/8 | 16 | 1.02 | 26 | 75 | 30 | 2 | 0.54 |
| LT1203-075 | 3/4 | 19 | 1.18 | 30 | 75 | 30 | 21/4 | 0.65 |
| LT1203-087 | 7/8 | 22 | 1.26 | 32 | 75 | 30 | 23/4 | 0.74 |
| LT1203-100 | 1 | 25 | 1.38 | 35 | 75 | 30 | 3 | 0.83 |
| LT1203-112 | 11/8 | 28 | 1.50 | 38 | 75 | 30 | 31/4 | 0.89 |
| LT1203-125 | 11/4 | 32 | 1.65 | 42 | 75 | 30 | 33/4 | 0.97 |
| LT1203-137 | 13/8 | 35 | 1.77 | 45 | 75 | 30 | 41/4 | 1.04 |
| LT1203-150 | 11/2 | 38 | 1.89 | 48 | 75 | 30 | 41/2 | 1.13 |
| LT1203-162 | 15/8 | 42 | 2.17 | 52 | 75 | 30 | 5 | 1.21 |
| LT1203-175 | 13/4 | 45 | 2.16 | 55 | 75 | 30 | 51/4 | 1.29 |
| LT1203-189 | 17/8 | 48 | 2.28 | 58 | 75 | 30 | 53/4 | 1.35 |
| LT1203-200 | 2 | 51 | 2.40 | 61 | 75 | 30 | 6 | 1.47 |
| LT1203-225 | 21/4 | 57 | 2.64 | 67 | 75 | 30 | 63/4 | 1.62 |
| LT1203-238 | 23/8 | 60 | 2.76 | 70 | 75 | 27 | 7 | 1.86 |
| LT1203-250 | 21/2 | 63 | 2.87 | 73 | 75 | 27 | 71/2 | 1.95 |
| LT1203-275 | 23/4 | 70 | 3.11 | 80 | 75 | 27 | 81/4 | 2.10 |
| LT1203-300 | 3 | 76 | 3.39 | 86 | 75 | 27 | 9 | 2.28 |
| LT1203-350 | 31/2 | 90 | 3.94 | 100 | 75 | 27 | 101/2 | 2.84 |
| LT1203-400 | 4 | 102 | 4.41 | 112 | 75 | 27 | 12 | 3.15 |
| LT1203-450 | 41/2 | 115 | 5.00 | 127 | 75 | 27 | 131/2 | 4.05 |
| LT1203-500 | 5 | 127 | 5.55 | 141 | 75 | 24 | 15 |
4.52 |
